Data Display System II

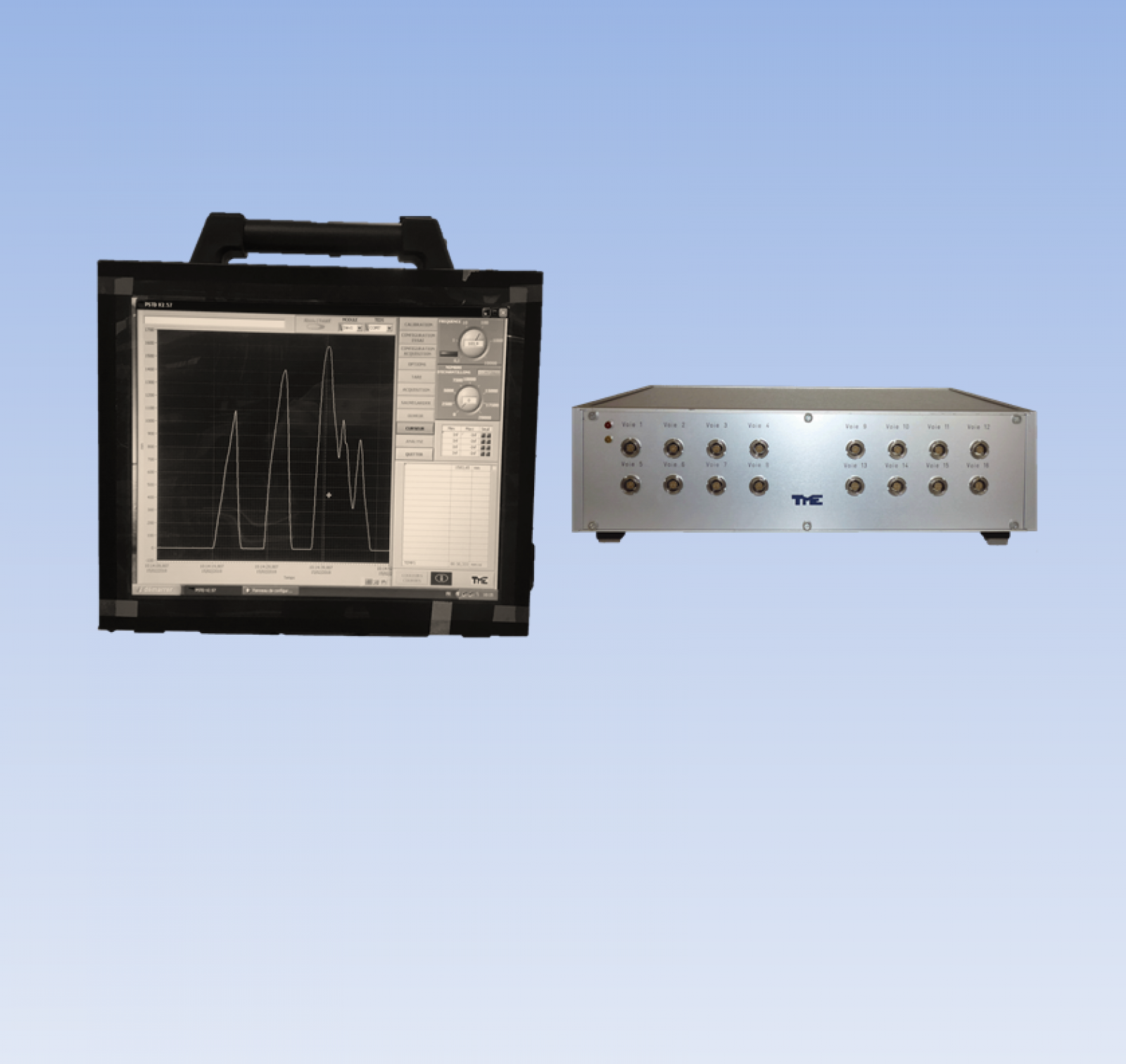

This acquisition system, industrial tactile PC, "all in one", allows to condition, to acquire and to visualize the signals of 8 to 16 sensors. Like any PC, it also allows the production of files of various formats (Excel, binary ...) as well as their printing.
- Excitation voltage (V) : 100-250Vac - 50 à 60Hz - 40W
- Sensor excitation voltage : 24 Vdc (0,25A sur l'ensemble des voies) / 5V (20 mA par voie)
- Computer requirements : Windows, XP, Windows 7, Windows 8
- Sensor connectors : Embase Jaeger 4broches
- Dimensions : 398 x 308 x 58 mm
- Display dimensions : 15 pouces
- Acquisition frequency (Hz) : 10 Hz
- TEDS reading : Compatible
- Accuracy : 16 bits
- Display resolution : 1024 x 768 Pixels
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
