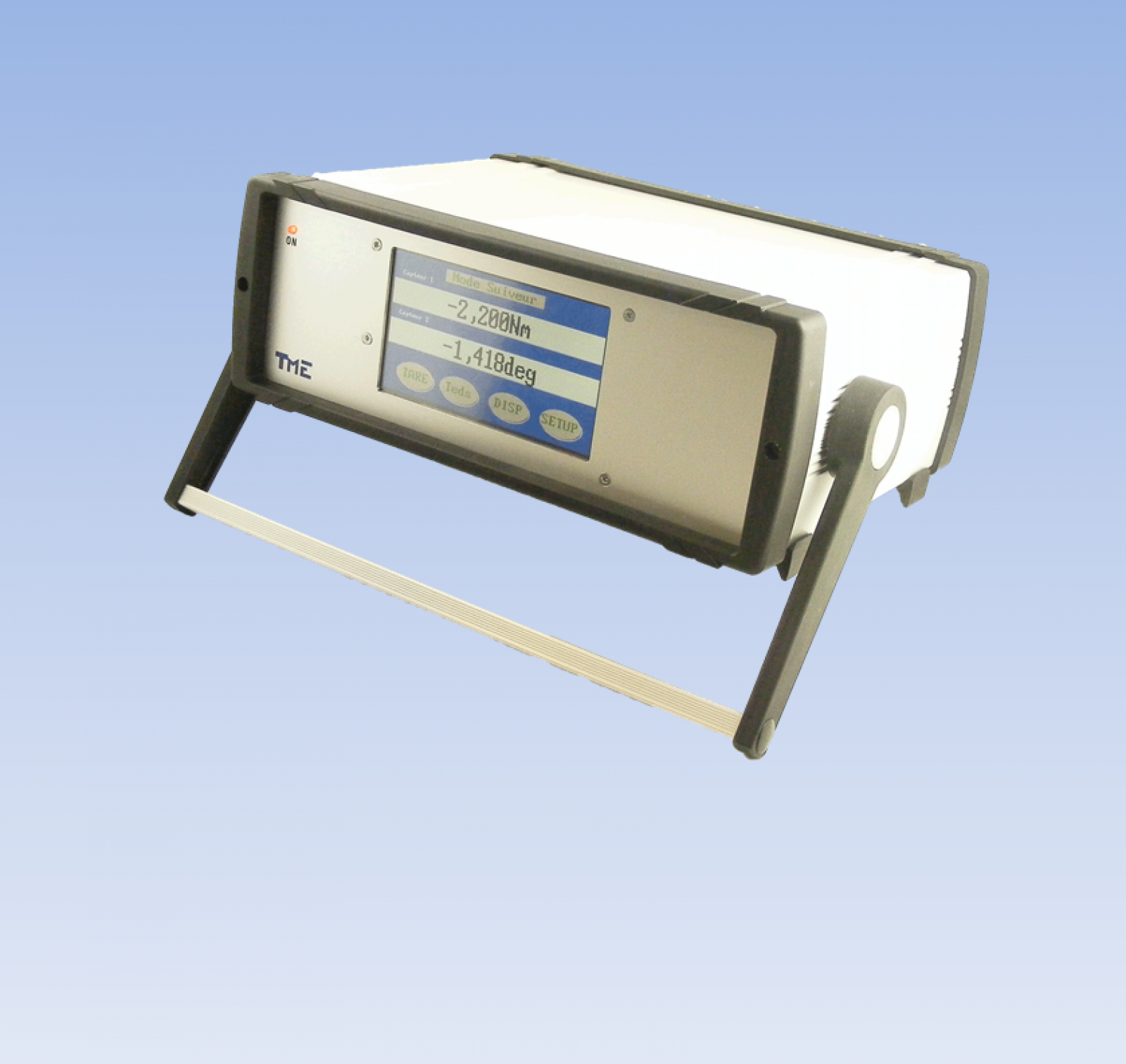

VISU

The U-Log range has been designed to provide sensor users with compact, smart and easy-to-access IT acquisition solutions. The VISU system is a 4-channel acquisition unit operating with low-level and high-level sensors (<15V) compatible with TEDS technology. It is also equipped with a touch screen on the front.

  • Excitation voltage (V) : 100-250Vac - 50 à 60Hz - 12W
  • Sensor excitation voltage : 24 Vdc (0,25A sur l'ensemble des voies) / 5V (20 mA par voie)
  • Box : 240 x 180 x 100 mm
  • Computer requirements : Windows, XP, Windows 7, Windows 8 / 2Go de RAM minimum
  • Sensor connectors : Lemo FGG1B310CLAD - 10 contacts
  • Display dimensions : 97 x 55 mm
  • Functions : Valeur suiveuse / Crête / Creux / Pic à Pic / Crête absolue / TEDS
  • Acquisition frequency (Hz) : 200 Hz
  • PC link : USB 2.0
  • Material : Aluminium
  • Weight (g) : 1 900 g
  • Accuracy : 10 000 points
  • Cycle speed : affichage : 10 Hz
  • Display resolution : 480 x 272 Couleur
