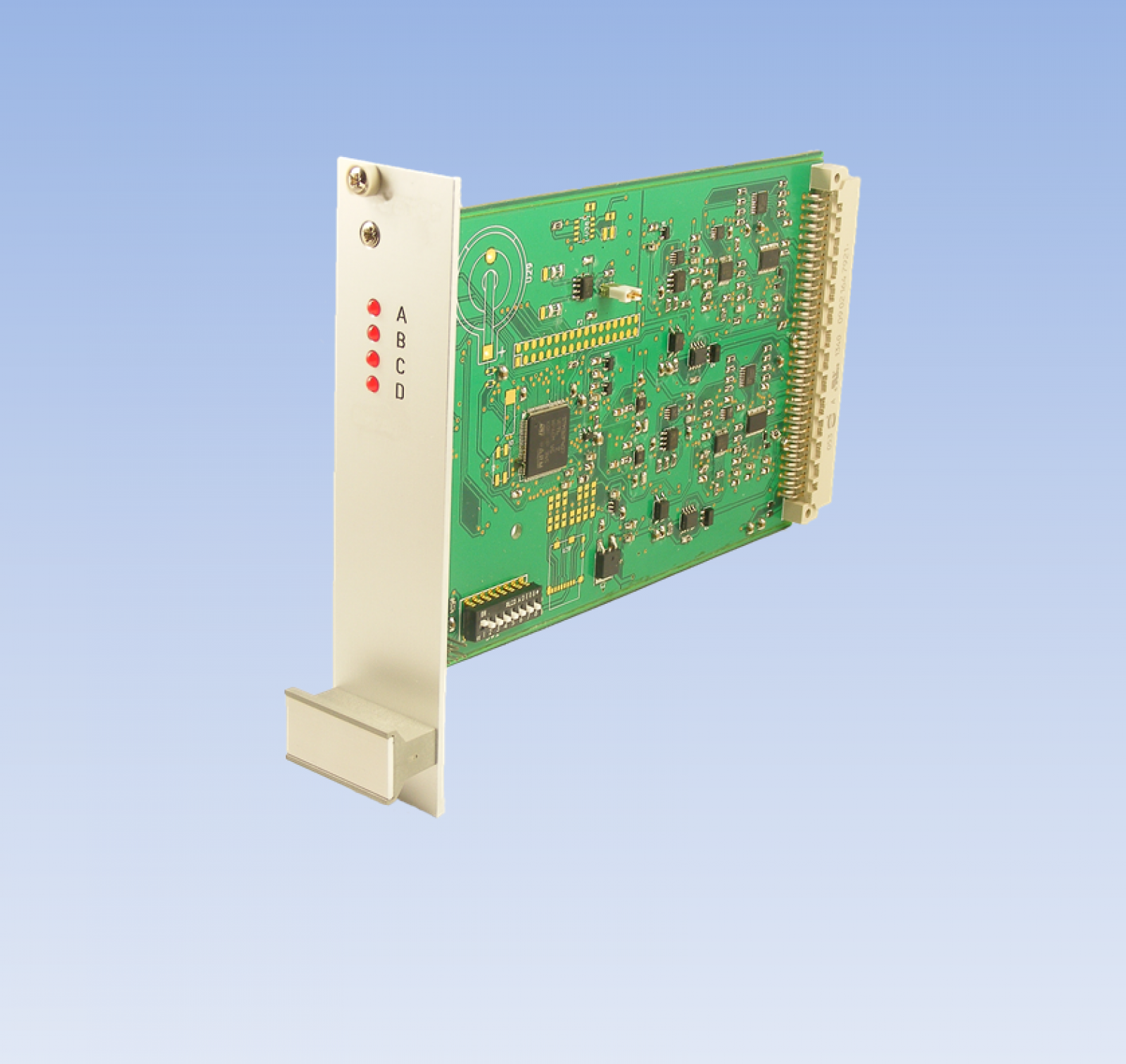

CCN 1000
The CCN 1000 digital conditioner offers 4 measurement channels and can be associated with a very wide range of sensors. It has the advantage of being able to operate in a multi-card configuration (up to 120 cards / 480 sensors), is computer configurable and compatible with TEDS technology.
- USB
- Selectable address : Dip Switchs
- Excitation voltage (V) : +/- 15 V
- Sensor excitation voltage : 10 régulé à 10^-5 V
- Bandwidth : 0-10 kHz (Paramétrable)
- Noise / input : < 5 microVolt sur gain maximum
- Consumption : De 150 à 500 mA
- One month deviation : < 5 microVolt
- Thermal drift : <= 1 microVolt/°C
- Input resistance (Ohm) : > 10^12 Ohms
- Zero balance range : +/-100% EM
- Accuracy : 0,1% EM
- Electrical installation : Connecteur DIN41612 - 2X32 broches
- Imput sensitivity : De 0,5 = +/-1500 mV/V
- Output signal (mA) : +/- 10V (20mA max) - Saturation à +/-14V
- Operating temperature (°C) : 0 à +50°C
- Storage temperature : -10 à +70 °C
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
