MCJ

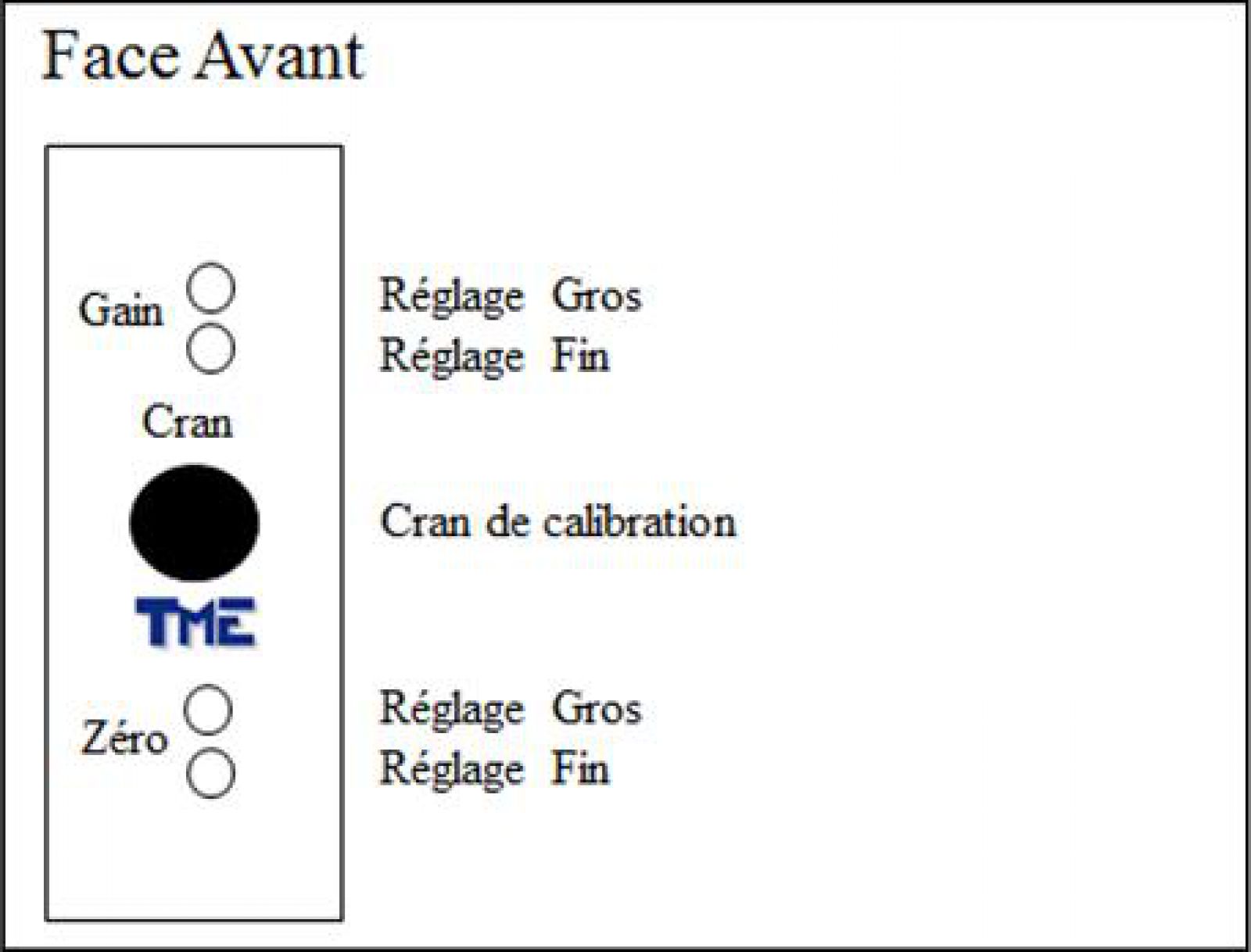

Designed for strain gage sensors or potentiometers DIN rail fixture Front panel calibration shunt Compatible with the MCS trigger level modules

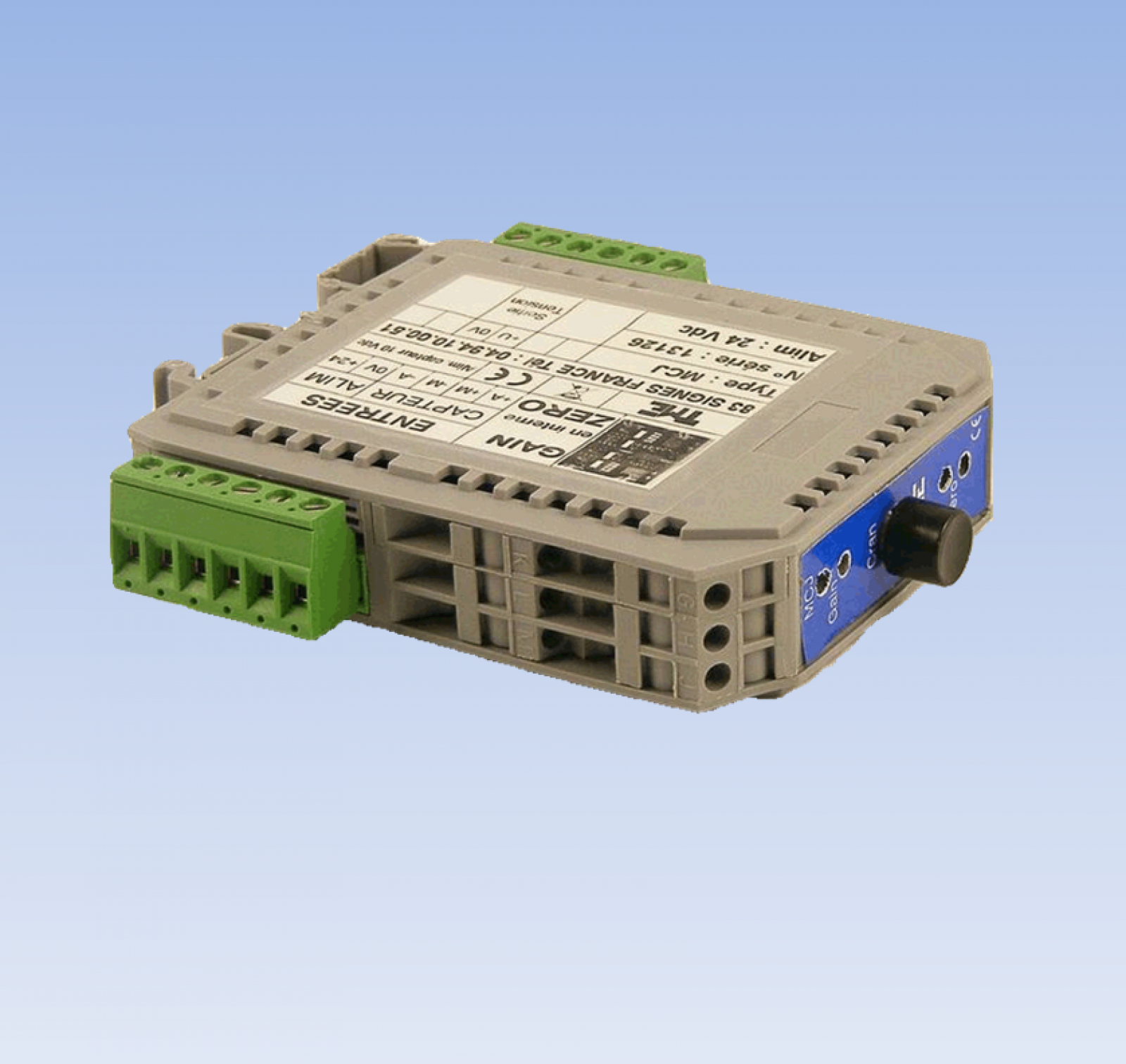

The MCJ conditioner is fixed on a DIN rail in a polyamide casing. the I/O electrical connection are through a screw type connector. It has a calibration shunt. All adjustments are made with multi turn trimmers and DIP switches with fine tuning adjustment.

Download PDF

Different outputs possible

Excitation voltage (V) : 24 +/- 4 V dc
Sensor excitation voltage : 10V / 60mA pour capteur 350 Ohms
Bandwidth : Fréquence de coupure 100 Hz / 3 dB filtre du 2ème ordre
Consumption : 70 mA pour capteur 350 Ohms
Dimensions : 22 x 75 x102 (l x h x p ) (mm)
Linearity deviation (%EM) : <= 0,05 % EM
Fixation : Rail DIN / Profilé 50035 / Profilé 50022 (35x15) / Profilé 50022 (35x7.5)
Input resistance (Ohm) : > 10^9 Ohms
Calibration reference resistor accuracy : 0,05 %
Electrical installation : 2 connecteurs, 6 contacts débrochables à vis
Output signal (Vdc) : Bipolaire +/-10V (10mA max)
Operating temperature (°C) : 0 à +50°C
Storage temperature : -30 à +85 °C

S - Semi conductor version : MCJ-S

P - potentiometer version : MCJ-P

6 - Current output 4-20mA

7 - Current output 0-20mA

Excitation sensor 5 V
