TME temperature sensors

Pt100/TC
3/4 wires Pt100

29226

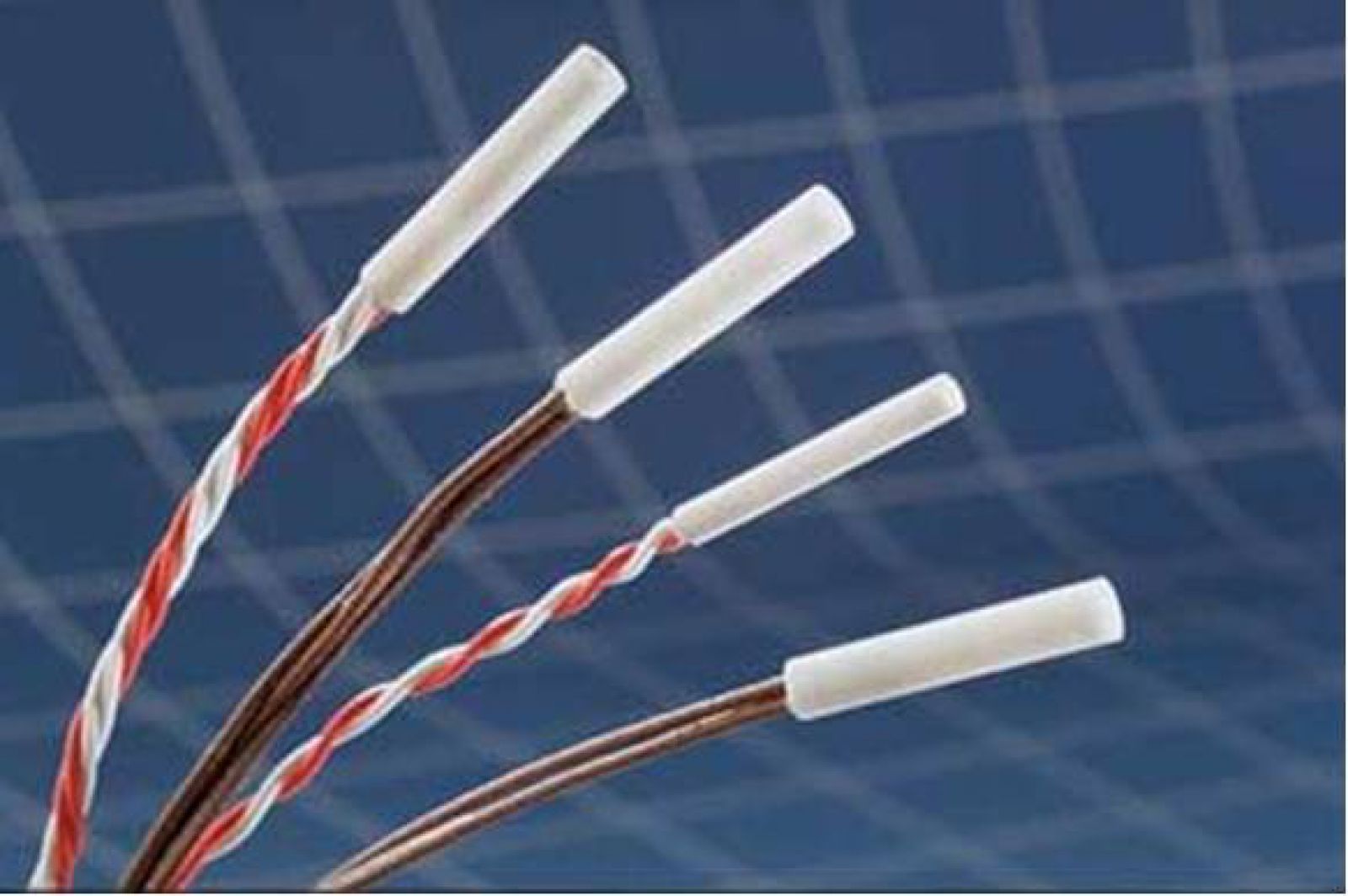

Platinum sensor sealed in a ceramic tube Up to +510°C (950°F)

This ready to use sensor is designed for severe environment conditions with its hermetically sealled ceramic or polyimide tube casing. The serie is available in 2, 3 or 4 wires.

Download PDF

Pt100/TC
3/4 wires Pt100

Power supply (mA) : 5 maximum 1 recommandé
Coefficient (Ohms) : 38,5 pour 100°C (DIN43760)
Electrical insulation ( MOhm) : > 50 Megohms sous 50Vdc à 25°C
Tube length (mm) : 12,7 et 15, 24 mm
Accuracy (%) : ± 0,12 IEC 751 Class B
Standard resistance (Ohms) : 100 ± 0,12

Reference : Model-T01-A,B or C-12

Version A : 2 wires

Version B : 3 wires

Version C : 4 wires

3 wires maximum for models 29229, 29231, 29232 and 29233

Wire length : 12 inches (305 mm)standard

Modèle	Diamètre tube mm	Longueur tube mm	EM en °C	Matière tube/isolant fils	Temps de réponse
29226	4,75	15,24	-200 +260	Alumine/Téflon	1,5 sec
29227	4,75	15,24	-75 +510	Alumine/Fibre de verre	1,5 sec
29235	4,75	15,24	-50 +200	Alumine/Téflon	1,5 sec
29228	3,175	15,24	-200 +260	Alumine/Téflon	0,8 sec
29229	3,175	15,24	-75 +510	Alumine/Fibre de verre	0,8 sec
29234	3,175	15,24	-50 +200	Alumine/Téflon	0,8 sec
29231	2,362	12,7	-200 +260	Polyimide/Téflon	0,6 sec
29232	2,362	12,7	-200 +350	Polyimide/Kapton	0,6 sec
29233	2,362	15,24	-50 +200	Polyimide/Téflon	0,6 sec
