Sensors
Temperature
TME temperature sensors
29258

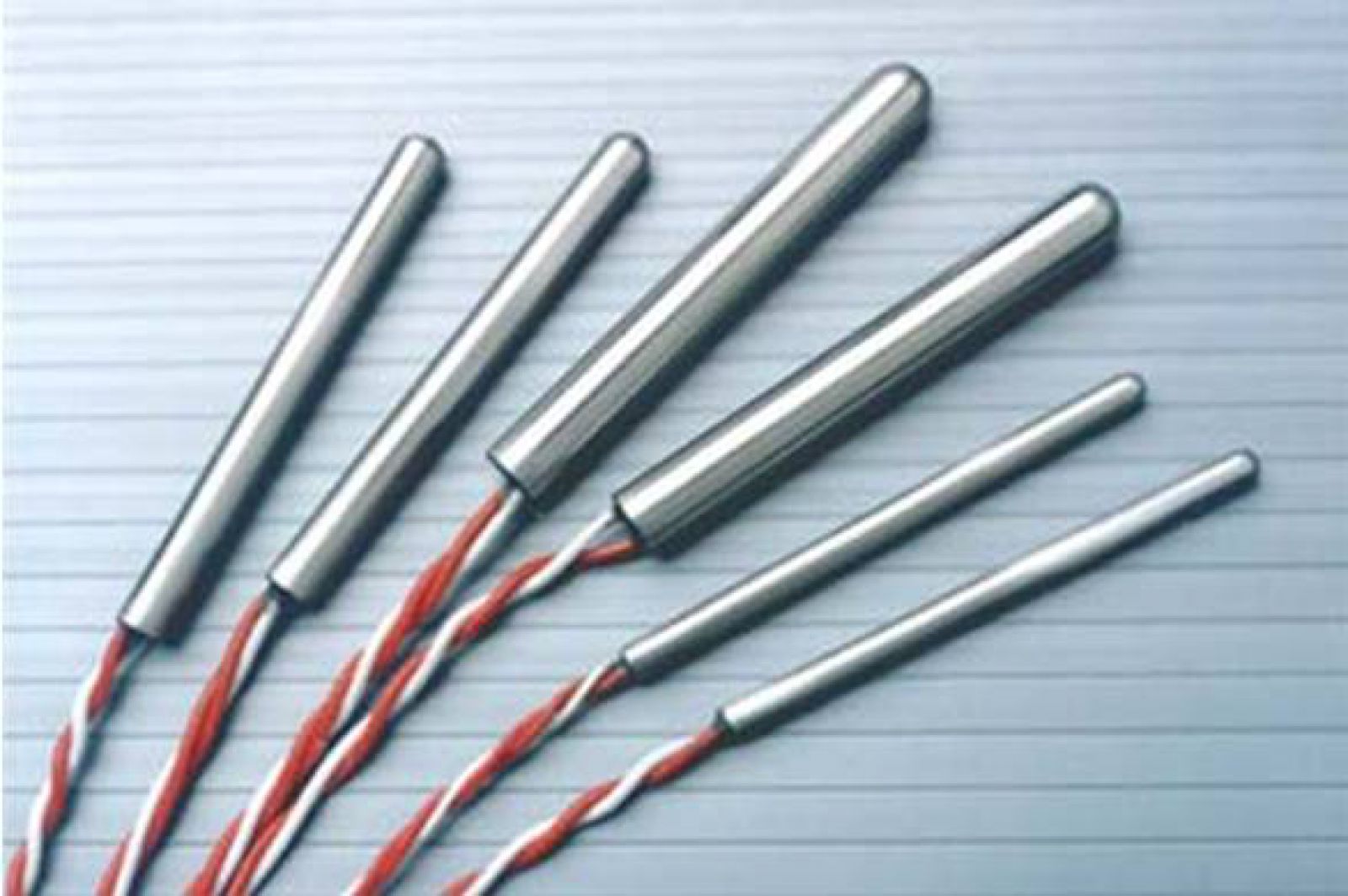

Platinum sensor sealed in a atinless steel tubing Range -50 to +232°C (-58 to 450°F) Available in 3 sizes
This ready to use sensor is hermetically sealed and is designed for severe environment conditions. The series is available in 2,3 or 4 wires.
- Pt100/TC
- 3/4 wires Pt100
- Power supply (mA) : 5 maximum 1 recommandé
- Coefficient (Ohms) : 38,5 pour 100° C (DIN43760)
- Capacity (°C) : - 50 à + 232
- Electrical insulation ( MOhm) : > 50 Megohms sous 50Vdc à 25°C
- Tube length (mm) : 50,8 ± 0,76
- Accuracy (%) : ± 0,12 IEC 751 Class B
- Standard resistance (Ohms) : 100 ± 0,12
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
