TME temperature sensors
29280

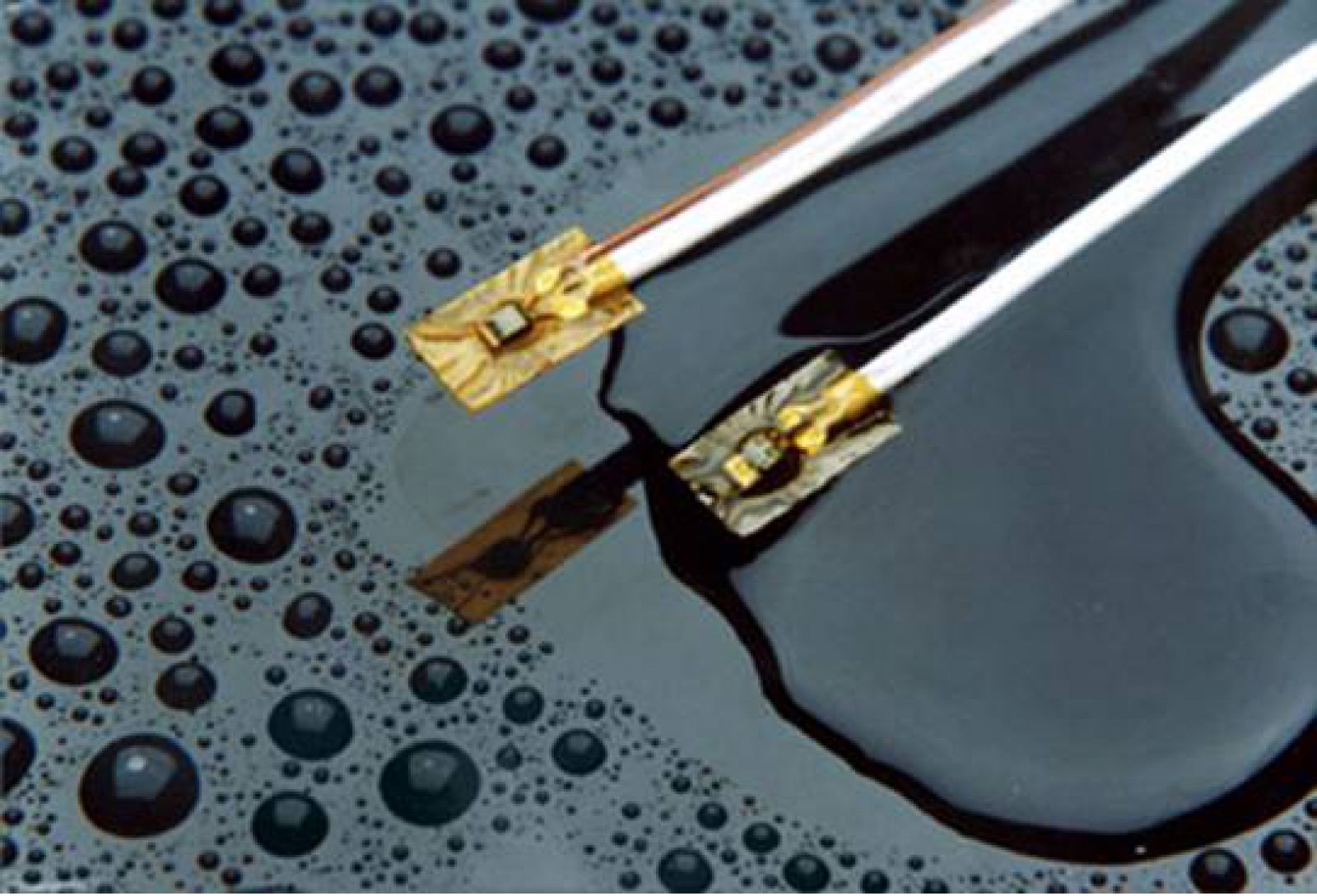

Immergeable Pt100 sensor Flexible surface sensor in platinum Range -200 to +260°C (-328 to 500°F)
The 29280 sensor series are specifically designed for high temperature on surface with possible immersion. Its small dimensions allows for an implementation on a large number of support types. The series are available with 2, 3 or 4 cables output.
- Pt100/TC
- 3/4 wires Pt100
- Power supply (mA) : 5 maximum 1 recommandé
- Coefficient (Ohms) : 38,5 pour 100°C (DIN43760)
- Capacity (°C) : - 200 à + 260
- Electrical insulation ( MOhm) : > 50 Megohms sous 50Vdc à 25°C
- Accuracy (%) : ± 0,12 IEC 751 Class B
- Standard resistance (Ohms) : 100 ± 0,12
- Response time (ms) : < 300 sur surface métallique
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
