TME temperature sensors
22810

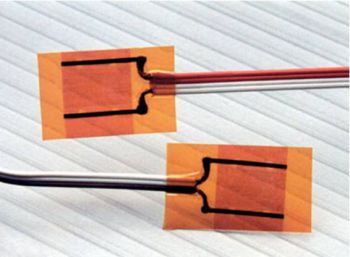

Protected Pt100 sensor in a Kapton support Flexible surface sensor in platinum
The sensors are designed for a quick set up on a precise area. The flexibility of the Kapton film support allows for a perfect surface fit.
- Pt100/TC
- 3/4 wires Pt100
- Power supply (mA) : 1 maximum
- Coefficient (Ohms) : 38,5 pour 100°C (DIN43760)
- Capacity (°C) : - 200 à + 290
- Electrical insulation ( MOhm) : > 50 sous 50 Vdc à 25°C
- Accuracy (%) : 0,5 (+/- 0,5 Ohm) Standard 22810-1 0,25 (+/- 0,22 Ohm) Option 22810-2
- Standard resistance (Ohms) : 100 à 0°C
- Support : KAPTON
- Response time (ms) : 70 pour un échelon de 63%
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
