Sensors
Displacement

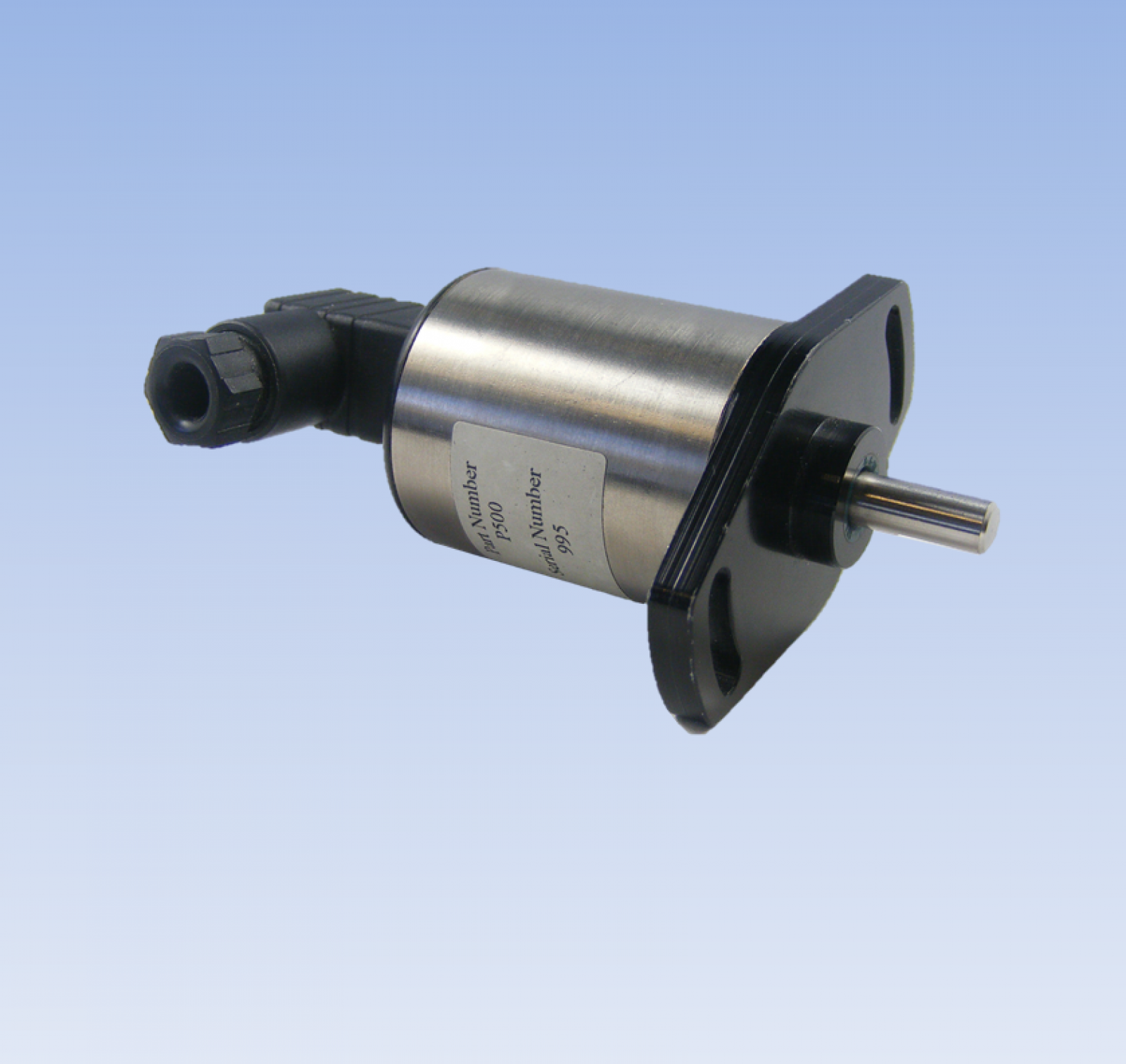

RIPS 500
- Inductive technology, No contact - Robust design - High band pass - Range from 130 to 160° - IP 67 with cable output
The position sensors serie RIPS 500 are high precision, robust devices, designed for industrial environment. A signal amplifier-conditioner in included giving a high level output. The inductive technology allows for a high band pass above 800Hz.
- Inductive
- Angular position
- Connector or cable output
- Accuracy class (%EM) : +/- 0,25 pour 100°
- Consumption (mA) : 20 maxi
- Capacity (EM) (°) : 30 à 160
- MTBF (Heures) : 450 000 à 40°C
- Operating temperature (°C) : -20 à +85
- Storage temperature : -40 à +125°C
- Admissive shock (g) : 40 (IEC 68-2-29)
- Vibration resistance (g) : 10 (IEC 68-2-6)
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
