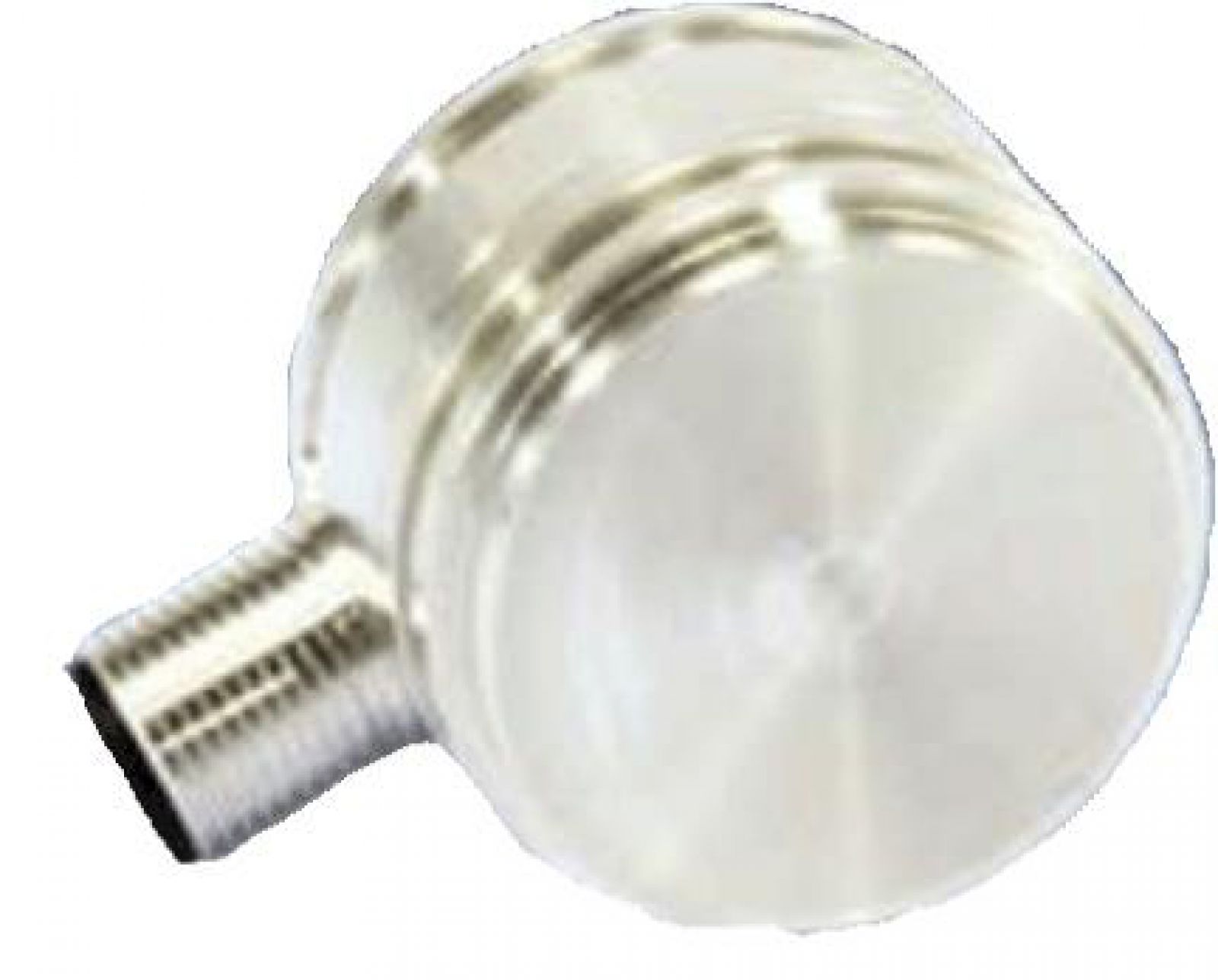

PTAM2
The PTAM2 series inclinometers are rugged and have either an analog output or a CANopen output. They exist with 1 or 2 measuring axes. MEMS technology.
- Mems
- Inclinometer
- Connector output
- Different outputs possible
- Excitation voltage (VAC ou DC) : 18-36 V (1), 5 V ± 10 % (2),10-36 V (3), 18-36 V / 10-36 V R <250 Ω (4)
- Shock (g/10ms) : EN60068-2-27:1993, 100g/11ms, 100chocs
- Consumption (mA) : 12 mA typ. 16 max (1), 16 mA typ. 20 max (2), 12 mA typ. 16 max (3), 32 mA typ. 36 max (4)
- Sealing : IP67/IP69K (Avec connecteur IP69K)
- Linearity : < ± 0.5
- Material : aluminium
- Resolution : 0.05
- Output signal (Vdc) : 2 mA
- Operating temperature (°C) : - 40 à + 85
- Vibration (g/20 à 2000 Hz) : EN60068-2-6:1995, 20g/10Hz-2kHz,
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
