LX-PA

- Economical position sensor - Light (plastic case) - Infinite resolution - Range up to 1,250 mm

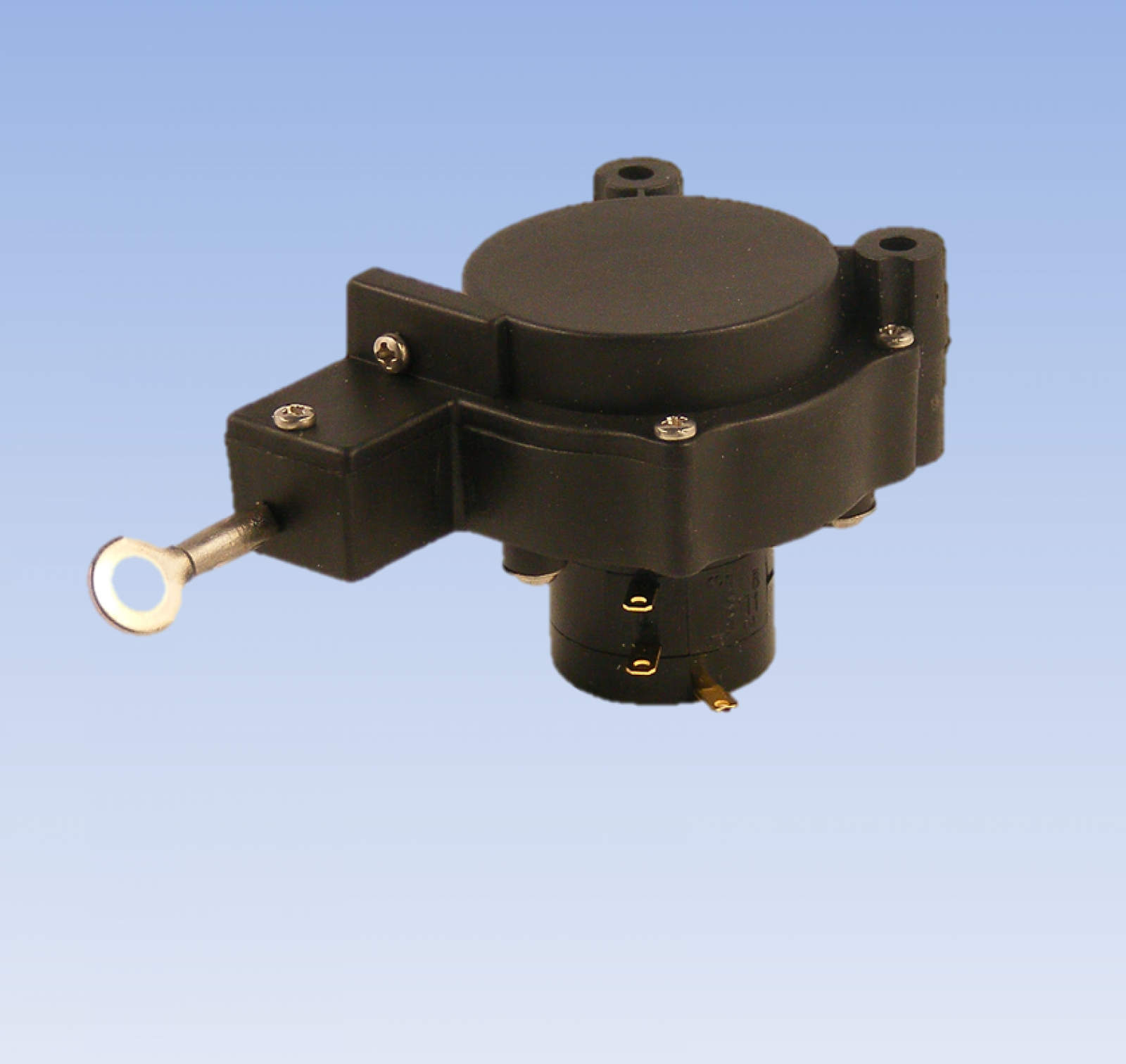

The LX-PA series sensor allows for a precise measurement from 0-50mm to 0-1,250m ranges.

The moving part is attached to the cable end, while the body is fixed. The cable movement pulls a spring attached to a potentiometer. The cable spring maintain a constant pull back tension on the cable. The pull back speed is limited by the spring torque. Installation support option.

Excitation voltage (VAC ou DC) : 25 maxi
Linearity deviation (%EM) : +/- 1 pour EM<=120 mm +/- 0,5 pour EM 250 à 625 mm +/- 0,25 pour EM 750 à 1250 mm
Capacity (EM) (mm) : 50, 70, 96, 120, 250, 380, 500, 625, 750, 1000, 1250
Moisture (%HR) : 95 maxi
Input resistance (Ohm) : 1000 +/- 15%
Output resistance (Ohm) : 0 à 1000
Mass (g) : 85
Material : Corps en plastique
Operating temperature (°C) : -15 à +60
Storage temperature : -25 à +80

Modèle	Etendue de Mesure (mm)	Sensibilité mV/V/mm	Effort de rappel sur cÃ¢ble (N)
LX-PA-2	50	18.5	4.4
LX-PA-2.8	70	13.4	3.9
LX-PA-3.8	96	10.1	3.1
LX-PA-4.7	120	8.1	2.2
LX-PA-10	250	3.5	4.4
LX-PA-15	380	2.5	3.9
LX-PA-20	500	1.9	3.1
LXPA-25	625	1.5	2.2
LX-PA-30	750	1.3	3.9
LX-PA-40	1000	1.0	3.1
LX-PA-50	1250	0.8	2.2

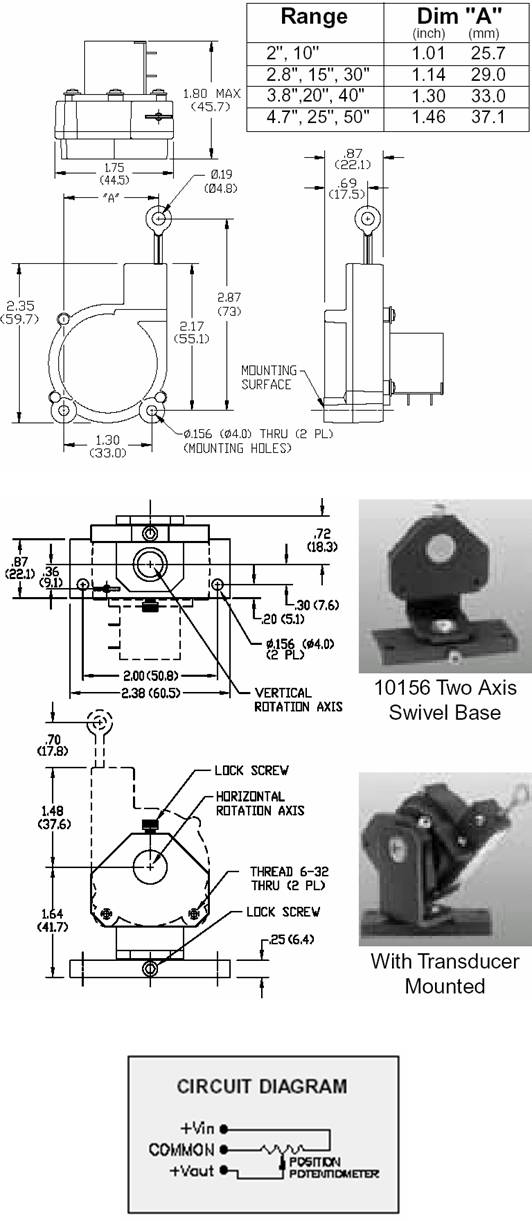

Installation support

Input impedence 2 to 5 kohms
