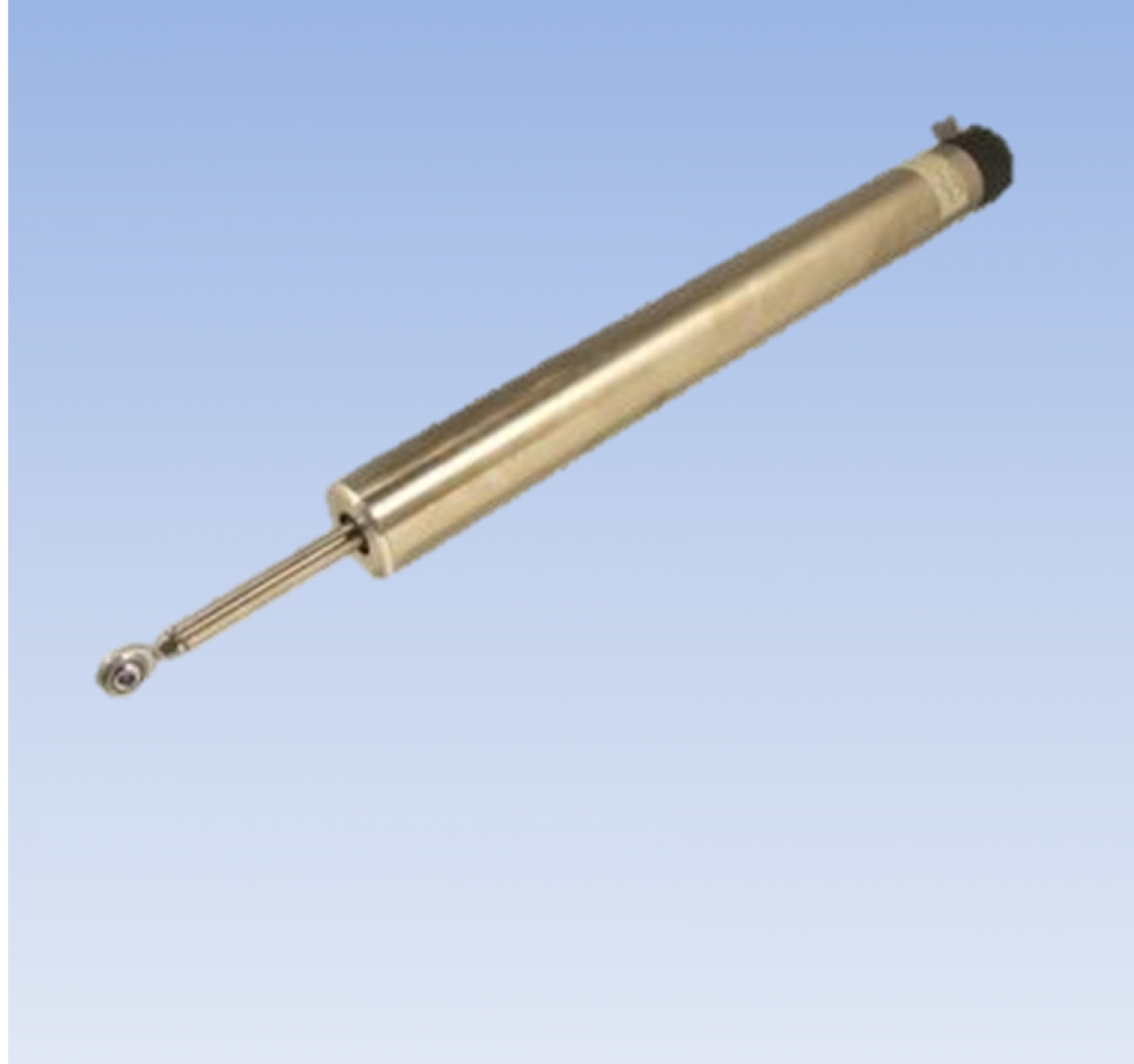

LIPS 101

- Induction technology, brushless - Robust design - High pass band - Range from 50 to 600mm - IP67 with side output

The series position sensors LIPS 101 are high precision, robust devices designed for industrial environment. A signal amplifier-conditioner in included giving a high level output. The inductive technology allows for a high band pass above 500Hz.

  • Accuracy class (%EM) : +/- 0,5
  • Consumption (mA) : 20 maxi
  • Capacity (EM) (mm) : 50, 100, 200, 300, 400, 500, 600
  • MTBF (Heures) : 450 000 à 40°C
  • Operating temperature (°C) : -20 à +85
  • Storage temperature : -40 à +125°C
  • Admissive shock (g) : 40 (IEC 68-2-29)
  • Vibration resistance (g) : 10 (IEC 68-2-6)

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
