HPS

.Range from 1 to 600 bars .Output 0-5V, 0-10V or 4-20 mA .Absolute or relative pressure .High stability over time .High corrosion resistance .Excellent linearity .Excellent resistance against absavive material .Large temperature range .Low consumption .Excellent durability

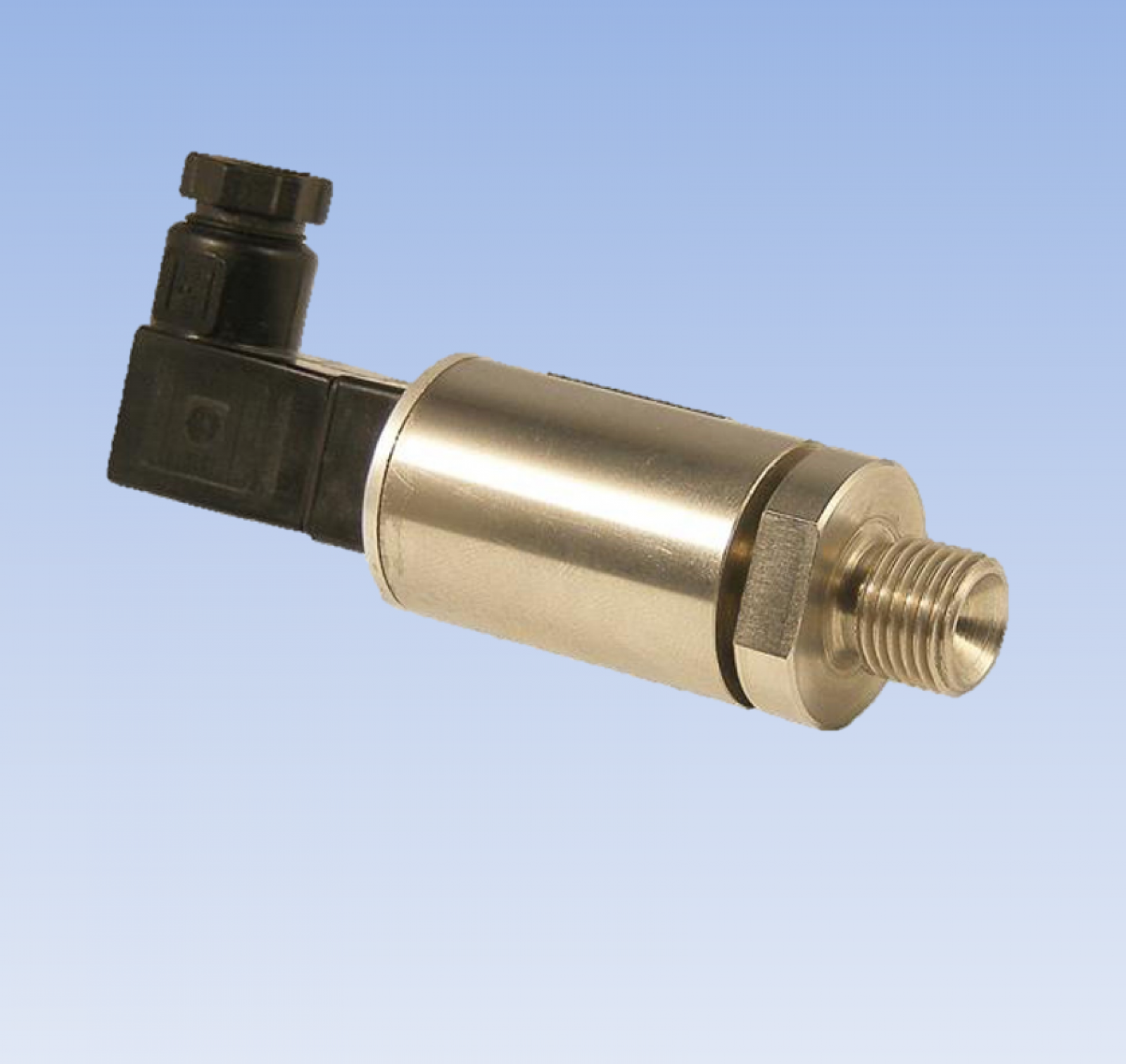

The HPS series pressure sensor are 25mm diameter withy an output signal of 0-5, 0-10VDC or 4.20mA. The sensing device is made of 4 gages on a ceramic diaphragm. The system is fitted into a 304 stanless steel body. The connector is either DIN or integrated cable with IP65 or IP68

Download PDF

  • Strain gages
  • Relative or absolute
  • Connector or cable output
  • mV output
  • Sensitivity creep on compensated range (%/°C) : < 0,008
  • Zero creep on compensated range (%Em/°C) : < ± 0,015
  • Initial imbalance (%Em) : ± 1
  • Linearity & hysteresis deviation (% EM) : < ± 0,25
  • Sealing : IP 65 en standard
  • Capacity (bars) : 1, 2, 3, 5, 10, 20, 50, 100, 200, 400, 600
  • Hydraulic installation : 1/4G mâle ou 1/4 NPT mâle
  • Output signal (Vdc) : 0-5, 0-10 VDC ou 4...20 mA
  • Safe overload (%EM) : 150
  • Operating temperature (°C) : - 20 à + 125
  • Compensated temperature (°C) : 0 à + 100
  • Excitation voltage (V) : 10 à 32 non régulé avec une sortie 0-5 VDC ou 4...20 mA 13 à 32 non régulé avec une sortie 0-10 VDC

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
