Sensors
Pressure

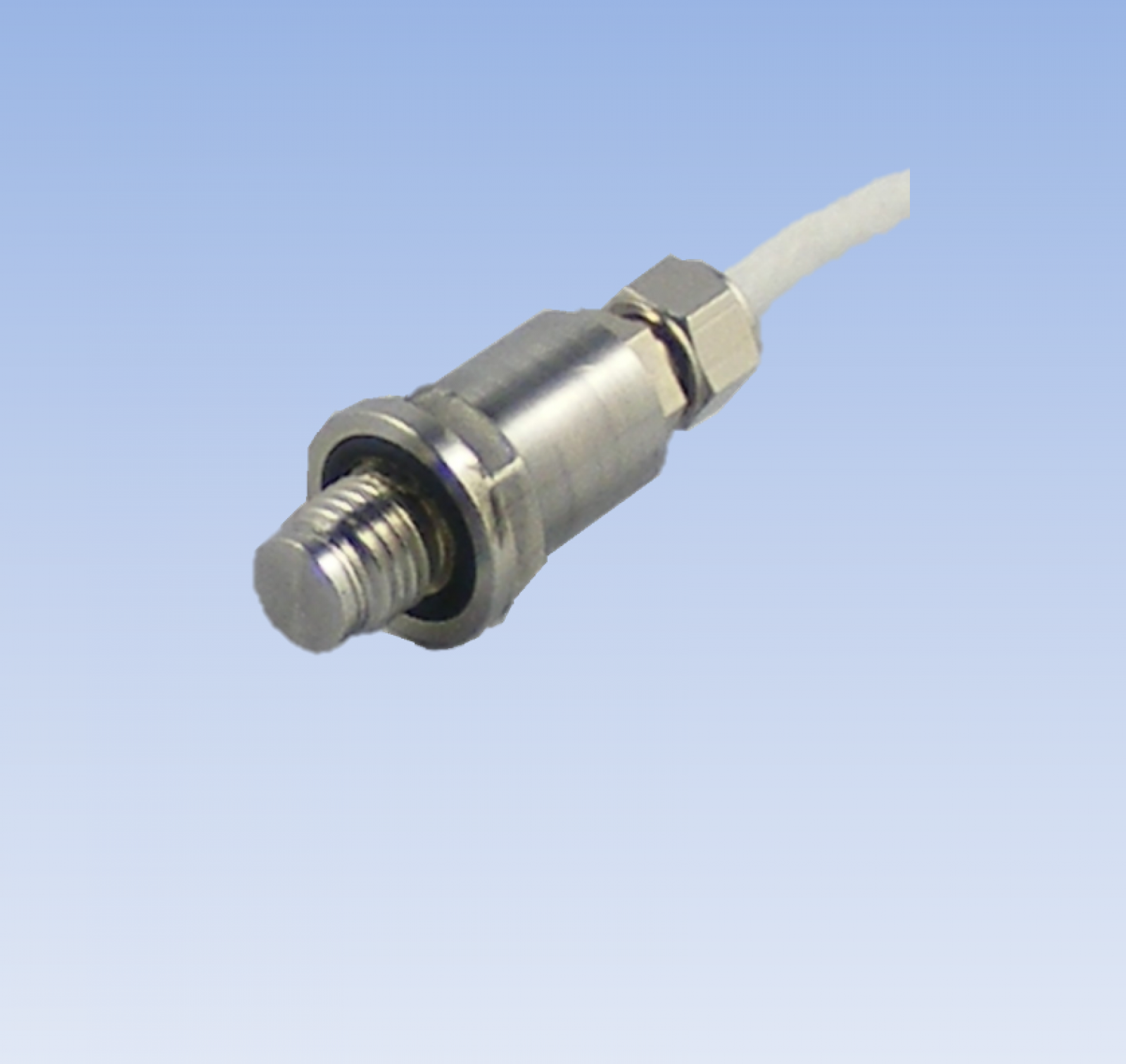

PM 204
- Relative pressure from 0-10 bars to 0-200 bars
- Flush membrane
- All parts stainless steel
- Standard version : PM 204
- M8 thread
MEASURING RANGE : 10, 20, 50, 100, 200, 250, 400 bars
The PM 204 series pressure sensors allow through its reduced size and diaphragm design access to the pressure point in static and dynamic
- High impedance strain gages
- Relative pressure
- Connector or cable output
- mV output
- Sensitivity creep on compensated range (%/°C) : ± 0,01
- Zero creep on compensated range (%Em/°C) : ± 0,01
- Initial imbalance (%Em) : < ± 2
- Hysteresis deviation (%EM) : ± 0,35
- Linearity deviation (%EM) : 0,35
- Sealing : Par joint torique fourni
- Capacity (bars) : 10, 20, 50, 100, 200
- Input resistance (Ohm) : environ 370
- Output resistance (Ohm) : 350
- Electrical insulation ( MOhm) : > 1000 sous 40 V
- Material : Acier inoxydable
- Electric cable specification : Gainé PVC

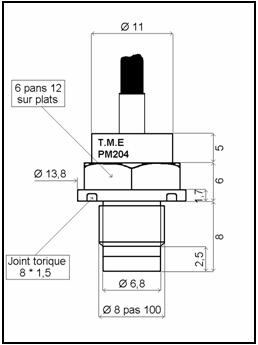

- Hydraulic installation : Ø 8 pas 100 ou Ø 8 pas 75 ( à préciser)
- Sensitivity at full range (mV/V) : environ 1
- Safe overload (%EM) : 150
- Operating temperature (°C) : - 20 à + 120
- Excitation voltage (V) : 5
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
