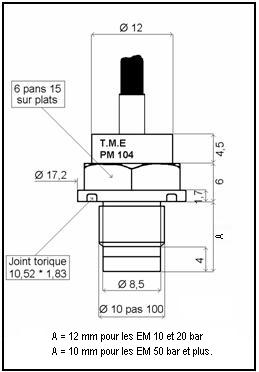

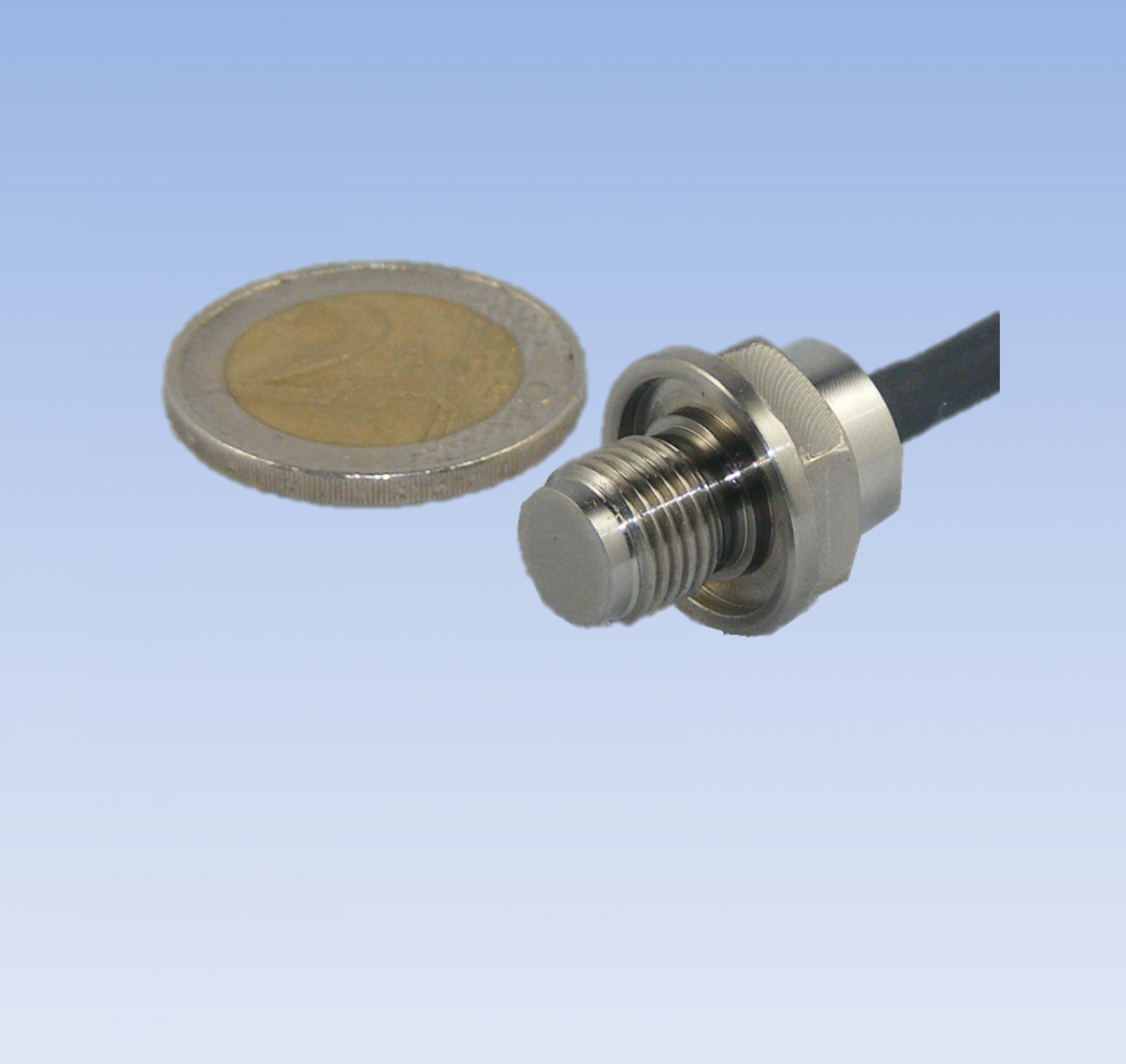

PM 104

Relative pressure from 0-10 bars to 0-400 bars Diaphragm design All parts stainless steel Connection through thread 10mm pitch 100

The PM 104 series of pressure sensors allow ,through their reduced size and diaphragm design, an installation close to the point to measure in static and dynamic

Download PDF

CAD 3D

  • Strain gages
  • Relative pressure
  • Connector or cable output
  • mV output
  • Tightening torque (Nm) : de 1,2 à 1,5
  • Sensitivity creep on compensated range (%/°C) : ± 0,01 ( PM 104)
  • Zero creep on compensated range (%Em/°C) : ± 0,01 ( PM 104)
  • Initial imbalance (%Em) : < ± 5
  • Hysteresis deviation (%EM) : ± 0,25
  • Linearity deviation (%EM) : 0,35
  • Sealing : Par joint torique fourni
  • Input resistance (Ohm) : environ 370
  • Output resistance (Ohm) : 350
  • Electrical insulation ( MOhm) : > 1000 sous 40 V
  • Material : Acier inoxydable
  • Electric cable specification : Gainé PVC
  • Hydraulic installation : Ø 10 pas 100
  • Sensitivity at full range (mV/V) : de 1 à 1,5 suivant E.M
  • Safe overload (%EM) : 150
  • Operating temperature (°C) : - 20 à + 120 ( PM 104)
  • Excitation voltage (V) : 5
