PI 104

.Relative pressure from 10 bars to 500 bars .Diaphragm design .All parts stailess steel .High temperature optional

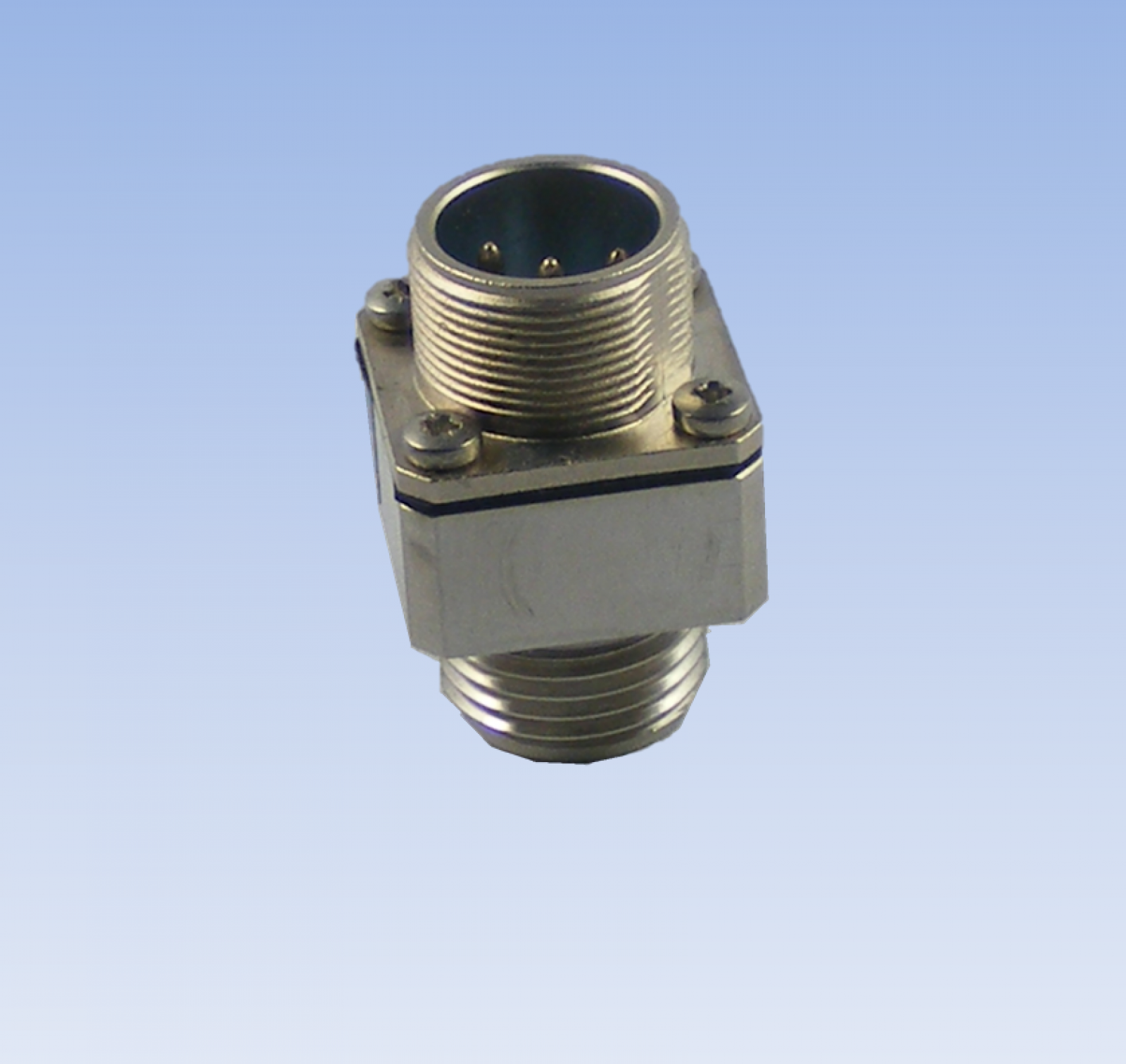

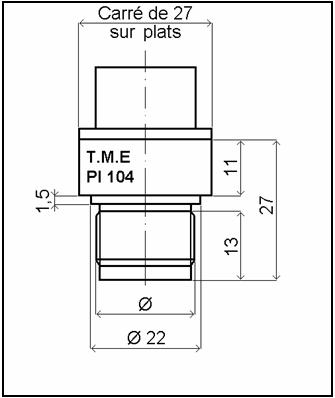

The PI 104 series pressure sensors are manufactured in stailess steel. The diaphragm located at the end of a 1/4 gaz or M20 pitch 100 thread allows for reduced dead volume

Download PDF

CAD 3D

  • High impedance strain gages
  • Relative pressure
  • Connector or cable output
  • mV output
  • Sensitivity creep on compensated range (%/°C) : ± 0,02
  • Zero creep on compensated range (%Em/°C) : ± 0,02
  • Initial imbalance (%Em) : ± 2
  • Hysteresis deviation (%EM) : ± 0,25
  • Linearity deviation (%EM) : 0,25
  • Capacity (bars) : 10, 25, 50, 100, 250, 350, 500
  • Input resistance (Ohm) : 350
  • Output resistance (Ohm) : 350
  • Electrical insulation ( MOhm) : > 1000 sous 40 V
  • Material : Acier inoxydable
  • Hydraulic installation : Ø 20 pas 100 ou 1/2 gaz cylindrique
  • Sensitivity at full range (mV/V) : 1,5 à 2
  • Safe overload (%EM) : 150
  • Operating temperature (°C) : - 20 à + 100
  • Excitation voltage (V) : 10

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
