PE 102

Relative pressure from 0-2 bars to 0-500 bars Diaphragm design All parts stainless steel Standard gages

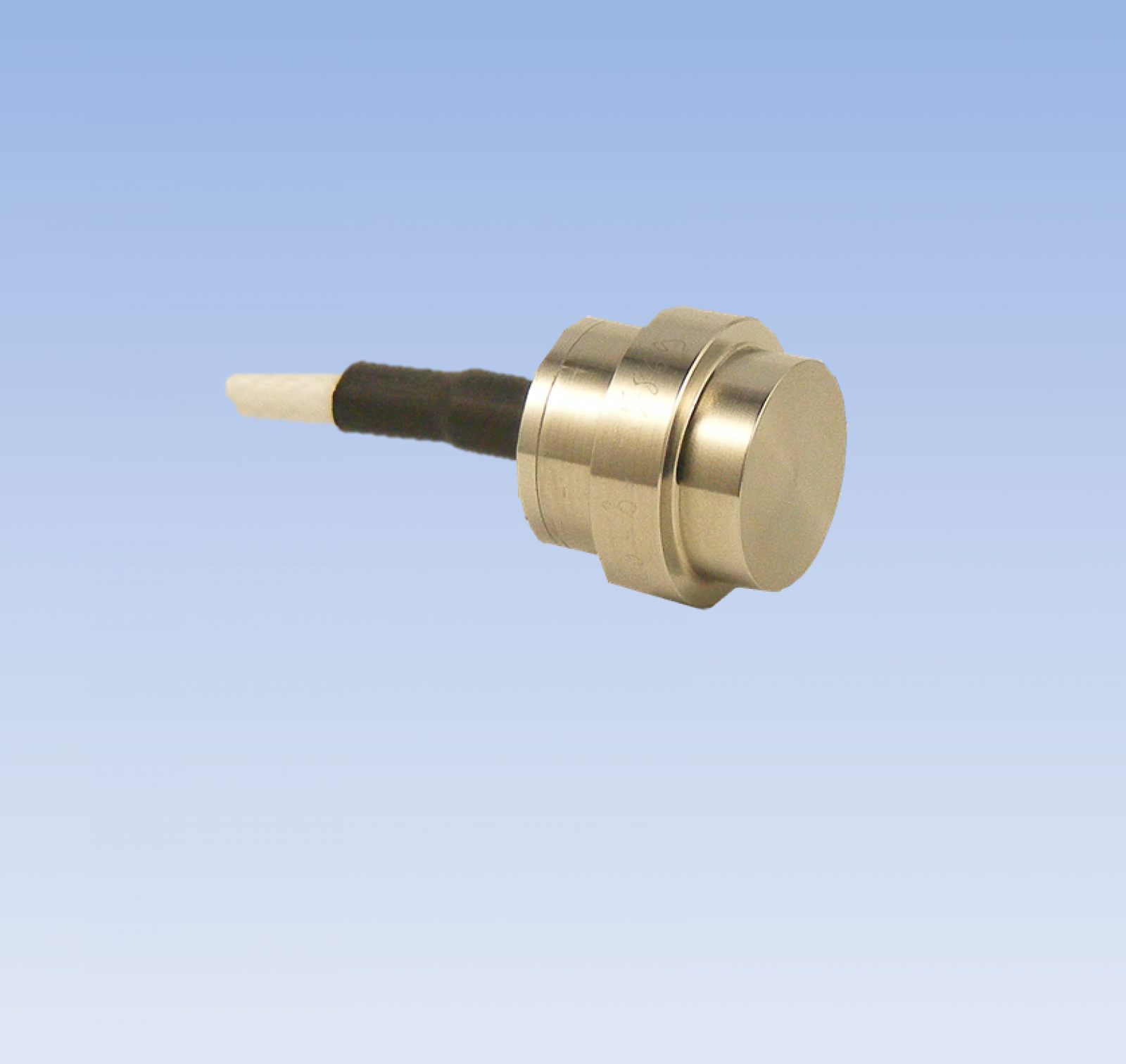

PE 102 series pressure sensors are designed for static and dynamic pressures.

They could be inserted close to the measuring point to avoid dead volumes.

Download PDF

High impedance strain gages
Relative pressure
Connector output
mV output

Sensitivity creep on compensated range (%/°C) : ± 0,02
Zero creep on compensated range (%Em/°C) : ± 0,015
Initial imbalance (%Em) : ± 2
Hysteresis deviation (%EM) : ± 0,15
Linearity deviation (%EM) : 0,35
Capacity (bars) : 5, 10, 25, 50, 100, 250, 350, 500
Input resistance (Ohm) : 350
Output resistance (Ohm) : 350
Electrical insulation ( MOhm) : > 1000 sous 40 V
Material : Acier inoxydable
Hydraulic installation : Montage affleurant
Sensitivity at full range (mV/V) : 1 pour EM 5 bars 1,5 à 2 pour autres EM
Safe overload (%EM) : 150
Operating temperature (°C) : - 20 à + 120
Excitation voltage (V) : 10

Output through a 4 wire braided cable. length 1 meter.

Other length upon request

Version cÃ¢ble
Rouge	+ Alimentation
Bleu	- Alimentation
Jaune	+ Mesure
Blanc	- Mesure

Ranges out of catalog

Special temperatures compensations option PE 102

To take full advantage of the diaphragm design, the sensor must be placed as close as possible of the desired measuring point, to avoid dead volume. Use a Ã˜ 23,7mm Oring to seal and tighten the sensor through its upper part.
