Sensors
Pressure
P173
- Relative pressure
- Measuring range : 10 bars
- Flush nitrided membrane
- 0-1V output
MEASURING RANGE : 10 bars

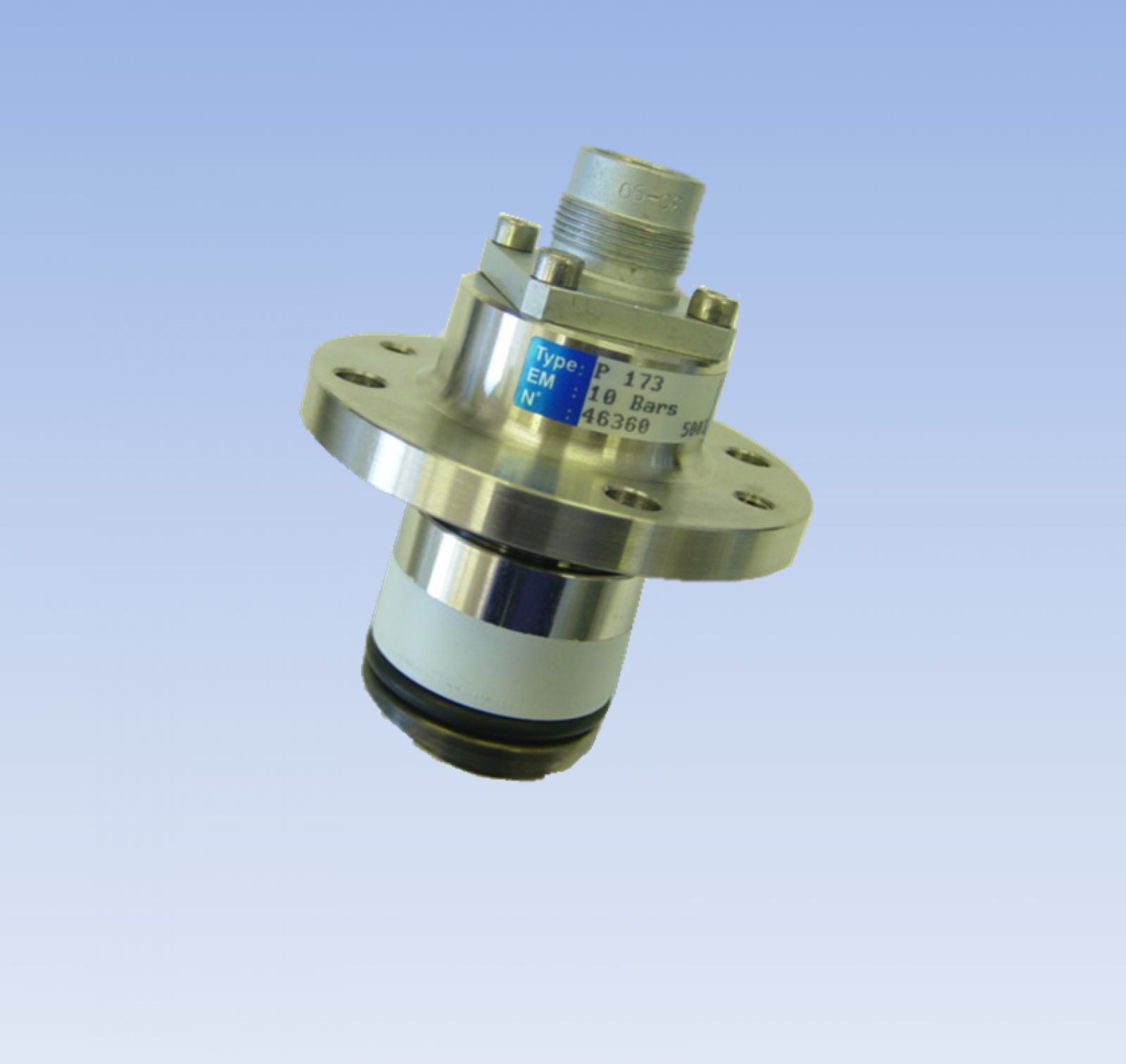

The P173 series pressure sensors have been designed for CONCRETE pressure measurement. They are made of nitrided steel and stainless steel. Thanks to their integrated electronics, they deliver a signal of 1V for 10 bars. The flush nitrided steel membrane provides good resistance to wear caused by concrete
- Strain gages
- Relative pressure
- Connector output
- V output
- Hysteresis deviation (%EM) : < 0.8
- Linearity deviation (%EM) : < 1
- Material : Acier inoxydable (boîtier), Acier nitruré (membrane)
- Output signal (Vdc) : 1
- Safe overload (%EM) : 300
- Operating temperature (°C) : - 10 à + 80
- Excitation voltage (V) : ± 5
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
