Sensors
Pressure

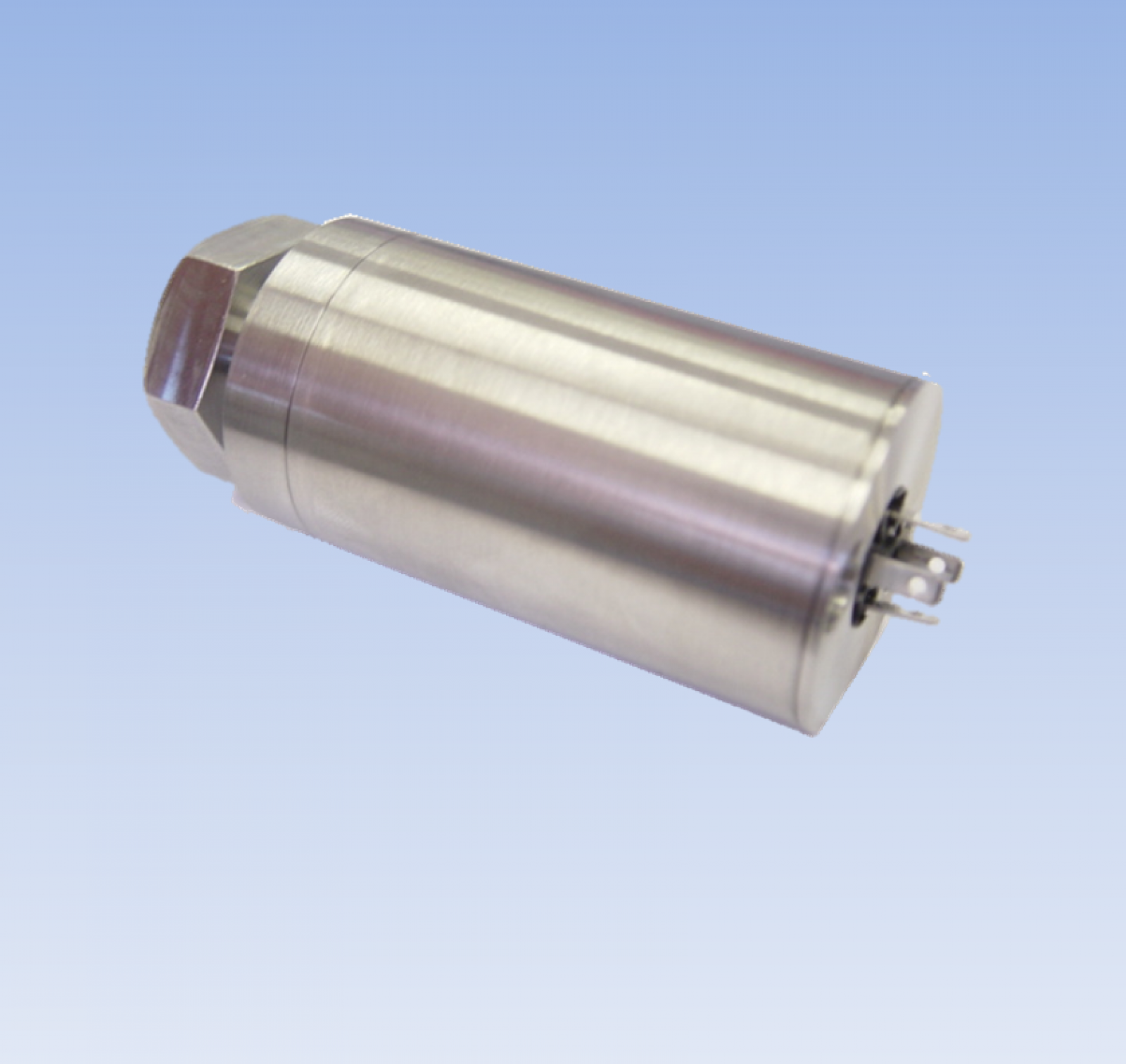

P153MA
- Relative pressure
- from 0-10 to 0-700 bars
- 2 wires output
- Stainless steel
MEASURING RANGES : 10, 25, 50, 150, 250, 350, 500, 700 bars
The P153 series pressure sensors are made entirely of stainless steel and, thanks to their integrated electronics, deliver a 4 - 20mA output signal in a 2-wire version.
- Strain gages
- Relative pressure
- Connector or cable output
- 4-20mA output
- Tightening torque (Nm) : 20 (150 à 700 bars)
- Sensitivity creep on compensated range (%/°C) : < 0.02
- Zero creep on compensated range (%Em/°C) : < 0.01
- Hysteresis deviation (%EM) : < ± 0.25
- Linearity deviation (%EM) : < 0.35
- Load resistance (Ohm) : Jusqu'à 1200
- Material : Acier inoxydable
- Hydraulic installation : 1/2 gaz cylindrique
- Adjustment of zero and scale : ± 10%EM (sur le capteur)
- Output signal (Vdc) : 4...20 mA
- Safe overload (%EM) : 150
- Operating temperature (°C) : - 10 à + 80
- Excitation voltage (V) : 9 à 32
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
