Sensors
Force
PXV 1000
- Extremly low profile design
- Solid state
- Light
- Quick connection
- IP 67
- Precision class 1500 points
- Compatible with all type of gages display
MEASURING RANGES : 750 and 1 000 kg

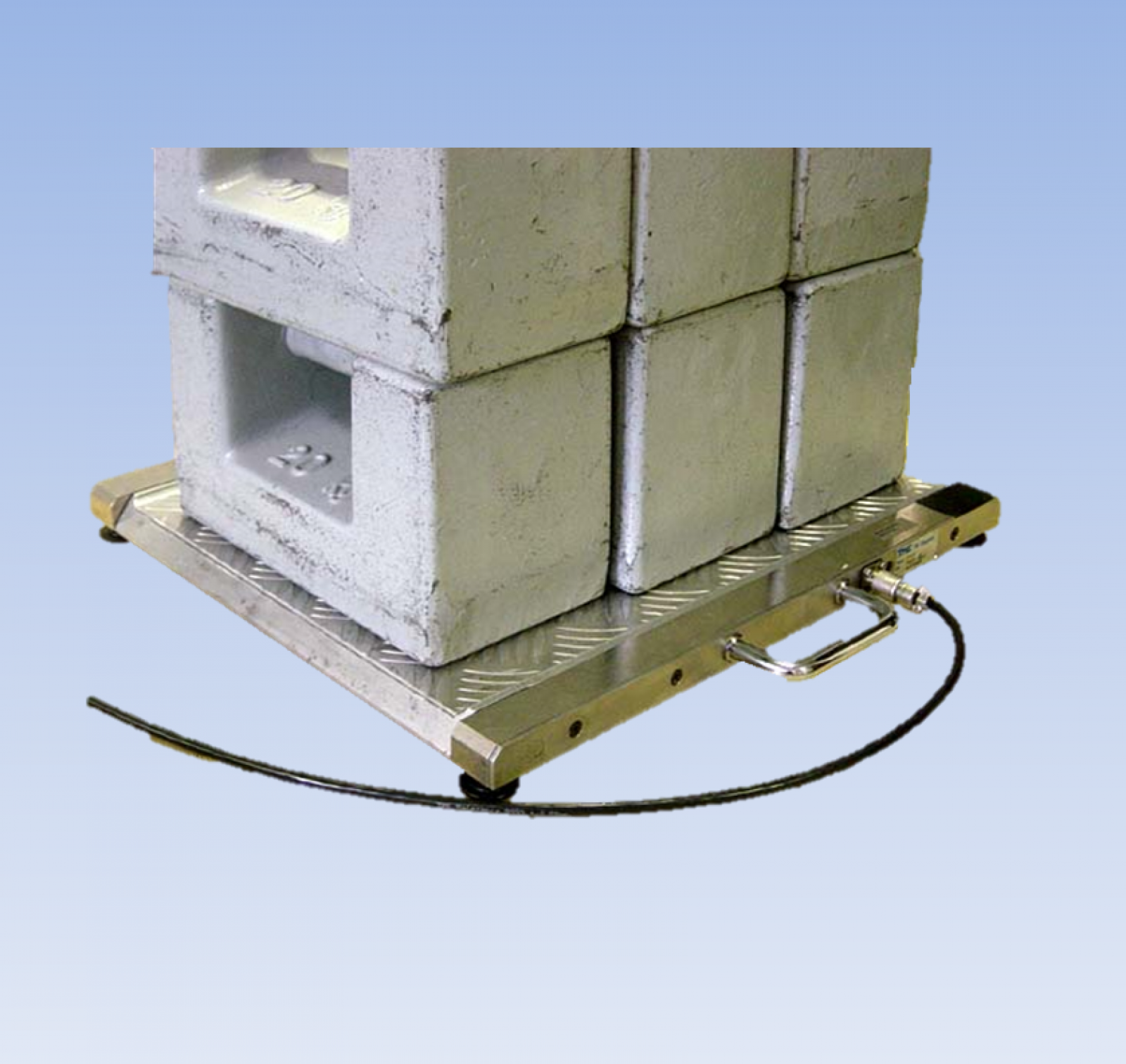

The PXV series weighting scale are designed for the automotive industry with a precision of 1500 points and is not sensitive to the load point. Its extremely low profile allows for a quick set up with ramp. Its light weight and reduced volume make it easily transportable. It is fitted with anti skid supports
- Strain gages
- Compression
- Connector or cable output
- mV output
- Sealing : IP 67
- Input resistance (Ohm) : 1 125
- Output resistance (Ohm) : 1 225
- Weight (g) : 8 kg
- Sensitivity at full range (mV/V) : 1.2
- Operating temperature (°C) : - 30 à + 70
- Excitation voltage (V) : 10
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
