AD

- Range from ± 500 ± 20000 daN

- Stainless steel

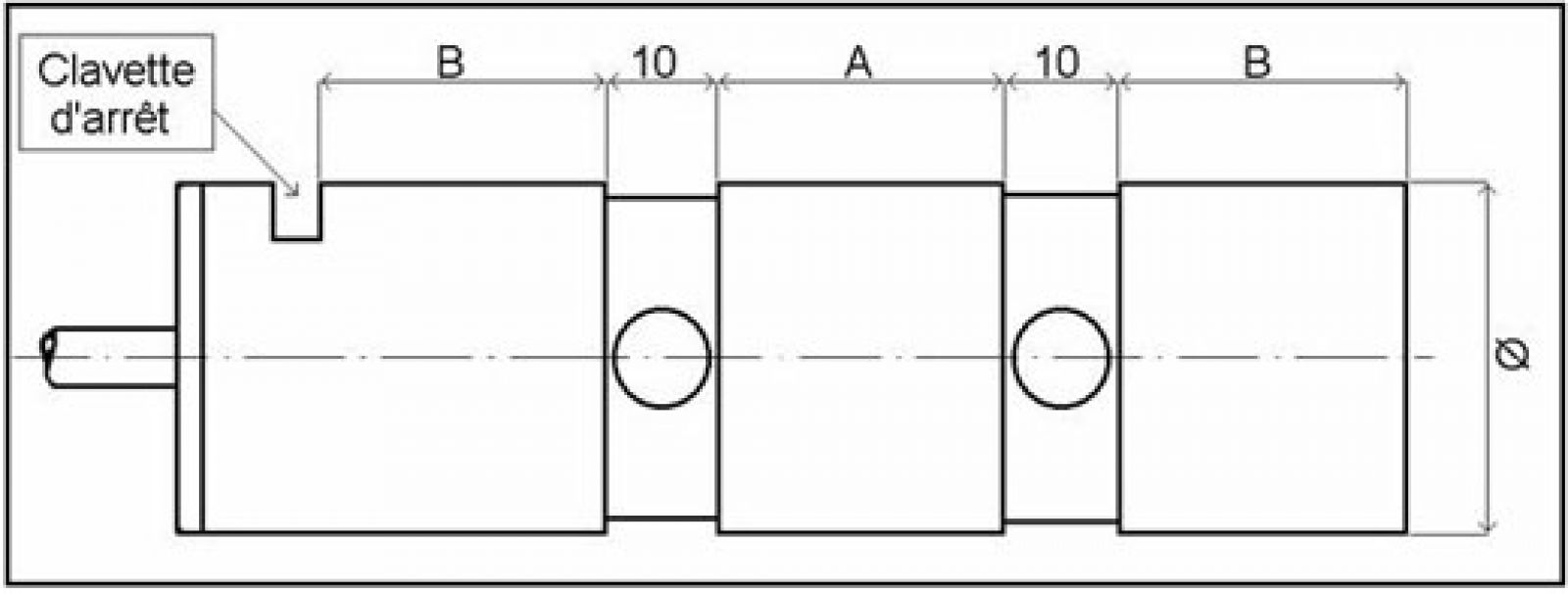

- General dimensions changes upon request

- Standard gages

- Easy to set up

The precision AD axes series are manufactured in stainless steel. They can be placed very close to the load to measure without major modification

Download PDF

  • Strain gages
  • Flexion
  • Cable output
  • mV output
  • Sensitivity creep on compensated range (%/°C) : +/- 0,02 %/°C
  • Zero creep on compensated range (%Em/°C) : 0,015 %EM/°C
  • Initial imbalance (%Em) : +/- 2 %EM
  • Hysteresis deviation (%EM) : +/- 0,5 %EM
  • Linearity deviation (%EM) : 0,5 %EM
  • Sealing : IP 65
  • Capacity (EM) (daN) : +/- 500, 1000, 2500, 5000, 10000, 20000 daN
  • Input resistance (Ohm) : 350 Ohms
  • Output resistance (Ohm) : 350 Ohms
  • Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
  • Material : Acier inoxydable
  • Output signal (mV/V) : Environ 1,5 mV/V
  • Safe overload (%EM) : 150 %EM
  • Operating temperature (°C) : -20 à +100 °C
  • Compensated temperature (°C) : +10 à +70 °C
  • Excitation voltage (V) : 10 V

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
