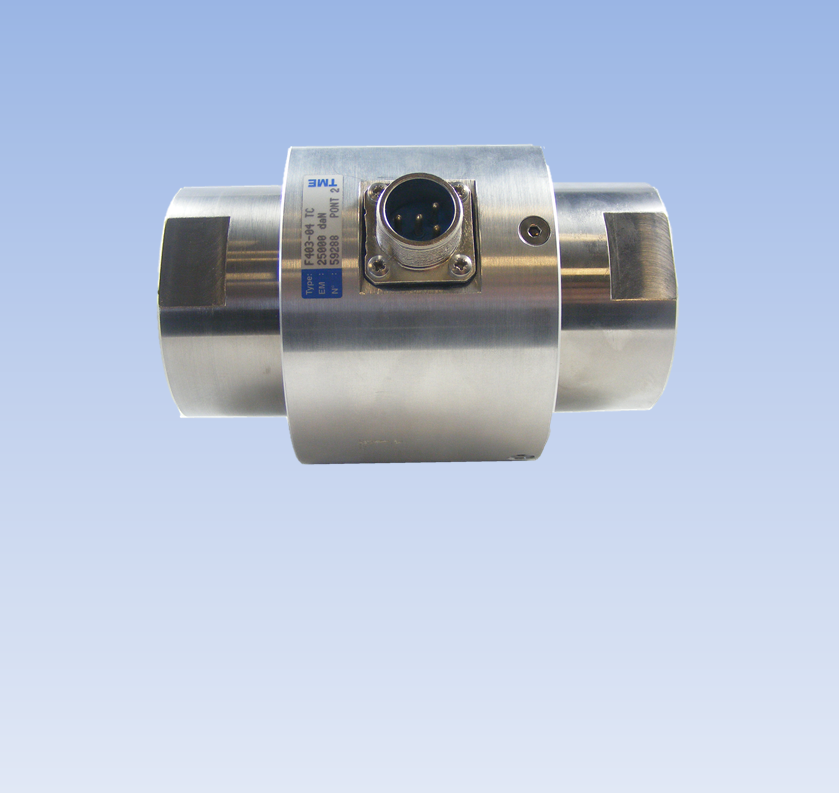

F 403 TC
MEASURING RANGES:
1000, 2500, 5000, 10000, 25000, 50000 daN
F403TC load cells series are designed to measure all types of very high loads in tension and compression. Their compacity make them best suited for cylinders
- Strain gages
- Traction / Compression
- Connector or cable output
- mV output
- Sensitivity creep on compensated range (%/°C) : < 0,02 %/°C
- Zero creep on compensated range (%Em/°C) : < 0,015 %EM/°C
- Initial imbalance (%Em) : < +/- 2 %EM
- Hysteresis deviation (%EM) : <= 0,15 %EM
- Linearity deviation (%EM) : <= 0,35 %EM
- Capacity (KN) : +/- 1000, 2500, 5000, 10000, 25000, 50000 daN
- Input resistance (Ohm) : 700 Ohms
- Output resistance (Ohm) : 700 Ohms
- Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
- Material : Acier inoxydable
- Sensitivity at full range (mV/V) : 1,5 mV/V
- Safe overload (%EM) : 150 %EM
- Operating temperature (°C) : -20 à +70 °C
- Excitation voltage (V) : 10 V
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
