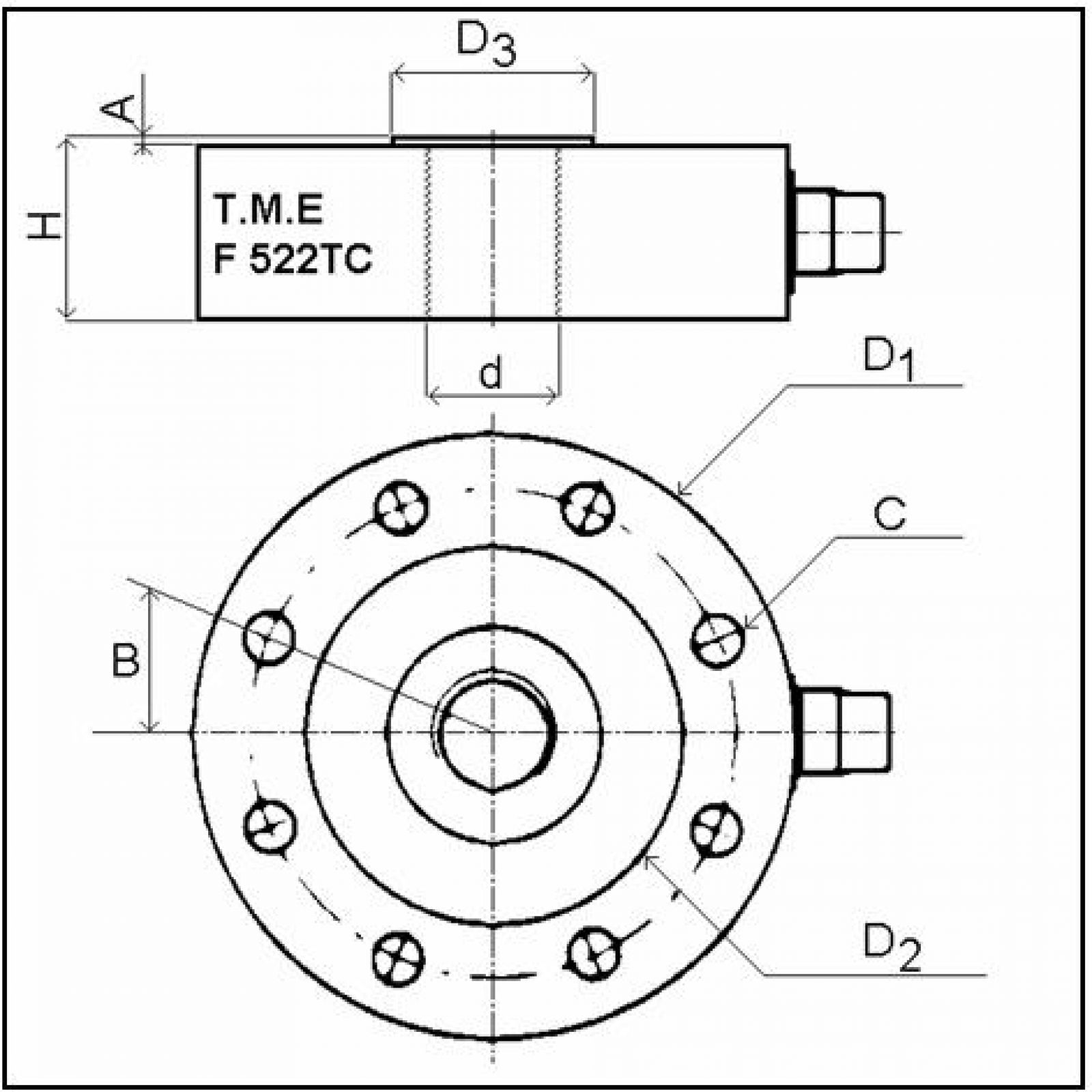

F 522 TC



  • Tension - compression
  • Robust design
  • Excellent durability
  • Hardened stainless steel
  • Up to 50 000daN



MEASURING RANGES: 500, 1000, 2500, 5000, 10000, 20000, 50000 daN

F552TC load cells are designed to measure and control static and dynamic loads on bench presses and test equipement

Download PDF

CAD 3D

  • Strain gages
  • Traction / Compression
  • Connector or cable output
  • mV output
  • Sensitivity creep on compensated range (%/°C) : < 0,02 %/°C
  • Zero creep on compensated range (%Em/°C) : < 0,015 %EM/°C
  • Initial imbalance (%Em) : < +/- 2 %EM
  • Hysteresis deviation (%EM) : +/- 0,1 %EM
  • Linearity deviation (%EM) : +/- 0,2 %EM
  • Capacity (EM) (daN) : +/- 500, 1000, 2500, 5000, 10000, 20000, 50000 daN
  • Input resistance (Ohm) : 350 et 700 Ohms suivant EM
  • Output resistance (Ohm) : 350 et 700 Ohms suivant EM
  • Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
  • Material : Acier Inoxydable
  • Sensitivity at full range (mV/V) : 1,5 +/- 0,1 mV/V
  • Safe overload (%EM) : 150 %EM
  • Operating temperature (°C) : -20 à +100 °C
  • Compensated temperature (°C) : +10 à +70 °C
  • Excitation voltage (V) : 10 V

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
