F 521 TC

Tension/compression
Robust
Excellent durability
Compact size
Hardened stainless steel

MEASURING RANGES : 50, 100, 250, 500, 1000, 2500, 5000 daN

The F521TC series, because of their excellent durability, are specifically designed for any application on bench test fatigue controls and machines controls

Download PDF

CAD 3D

Strain gages
Traction / Compression
Connector or cable output
mV output

Sensitivity creep on compensated range (%/°C) : < 0,02 %/°C
Zero creep on compensated range (%Em/°C) : < 0,015 %EM/°C
Initial imbalance (%Em) : < +/- 2 %EM
Hysteresis deviation (%EM) : +/- 0,15 %EM
Linearity deviation (%EM) : +/- 0,15 %EM
Capacity (EM) (daN) : +/- 50, 100, 250, 500, 1000, 2500, 5000 daN
Input resistance (Ohm) : 700 Ohms environ
Output resistance (Ohm) : 700 Ohms
Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
Material : Acier inoxydable
Sensitivity at full range (mV/V) : 2 +/- 0,1 mV/V
Safe overload (%EM) : 150 %EM
Operating temperature (°C) : -20 à +100 °C
Compensated temperature (°C) : +10 à +70 °C
Excitation voltage (V) : 10 V

Output with 4 pins Jeager 533801 connector ( male plug and cord grip included )

Connector
1	+ Excitation
3	- Excitation
4	+ Output
2	- Output

Integrated plate stopper : F521B (overall height + 20mm)

Swivel mount : ES 21 A10 - ES 21 B 16

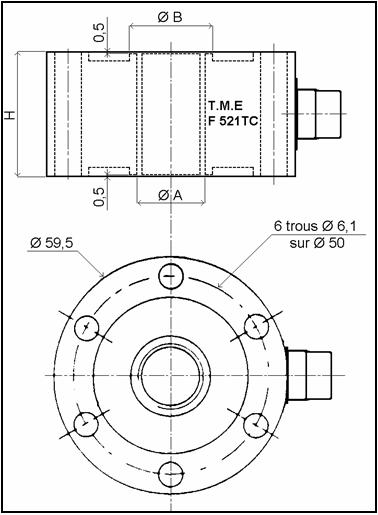

Full scale (daN)	Diameter A	Diameter B	H
0 250	10x1,5	16	25
500 5000	16x1,5	20	30
