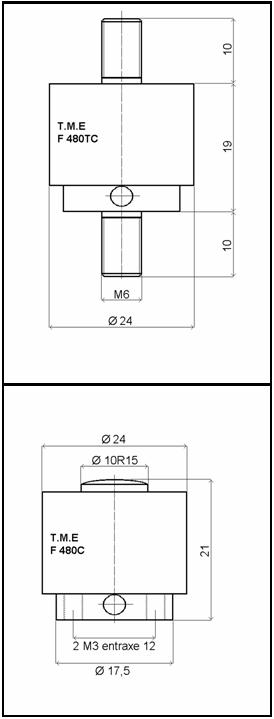

F 480 C & F 480 TC



  • Tension/compression or compression
  • From ± 25 to ± 200 daN
  • Small footprint
  • Excellent size / precision ratio

MEASURING RANGE: 25, 50, 100, 200 daN

The F480 TC series force sensor are all stainless steel and have a range up to 200 daN

Download PDF

CAD 3D

  • Strain gages
  • Traction / Compression
  • Cable output
  • mV output
  • Sensitivity creep on compensated range (%/°C) : < 0,02 %/°C
  • Zero creep on compensated range (%Em/°C) : < 0,015 %EM/°C
  • Initial imbalance (%Em) : < +/- 2 %EM
  • Hysteresis deviation (%EM) : +/- 0,5 %EM
  • Linearity deviation (%EM) : +/- 0,5 %EM
  • Capacity (EM) (daN) : +/- 25, 50, 100, 200 daN
  • Input resistance (Ohm) : 350 Ohms environ
  • Output resistance (Ohm) : 350 Ohms
  • Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
  • Material : Acier Inoxydable
  • Sensitivity at full range (mV/V) : 1 mV/V (25 daN) 1,5 mV/V (autres EM)
  • Safe overload (%EM) : 150 %EM
  • Operating temperature (°C) : -20 à +80 °C
  • Compensated temperature (°C) : +10 à +70 °C
  • Excitation voltage (V) : 10 V

    Specific products

    For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
