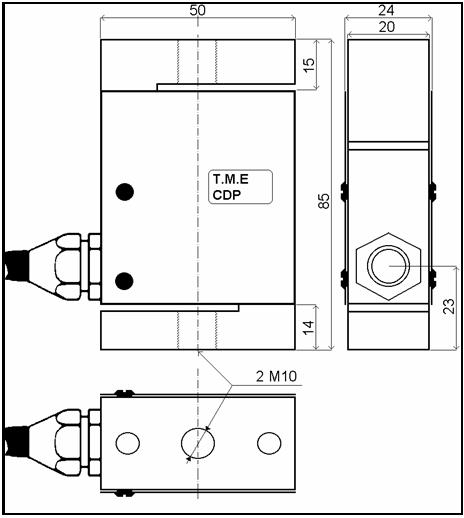

Double scale CDP

Tension - compression
Overload stopper included on low scale
Not sensitive to side forces

MEASURING RANGES : HIGH SCALE: 100, 250, 500
LOW SCALE: 10, 25, 50, 100

Similar in design to the F612TC and F501TC, these sensors allow for very low capacity (0 to 10daN) and up to 500daN without endangering the low capacity side.

Download PDF

Strain gages
Traction / Compression
Cable output
mV output

Sensitivity creep on compensated range (%/°C) : < 0,02
Zero creep on compensated range (%Em/°C) : < 0,015
Initial imbalance (%Em) : +/- 2
Hysteresis deviation (%EM) : +/- 0,03
Linearity deviation (%EM) : +/- 0,08
Sealing : IP 65
Capacity (EM) (daN) : Portée haute : +/- 100, 250, 500 Portée basse : +/- 10, 35, 50, 100
Input resistance (Ohm) : 350
Output resistance (Ohm) : 350
Electrical insulation ( MOhm) : > 1000 sous 40 V
Material : Corps en acier traité capot en tôle
Sensitivity at full range (mV/V) : 2
Compensated temperature (°C) : +10 à +70
Excitation voltage (V) : 10

Output with 8 conductor braided cable, length 1 meter
Other length upon request

High scale	Low scale
Red	Brown	+ Excitation
Black	Blue	- Excitation
Green	Yellow	+ Output
White	Orange	- Ouptut

High scale (daN)	Low scale (daN)
500	10
500	25
500	50
500	100
250	10
250	25
250	50
100	10
100	25
