Sensors
Force

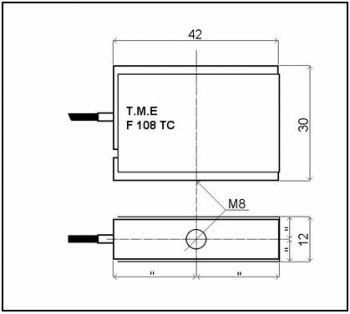

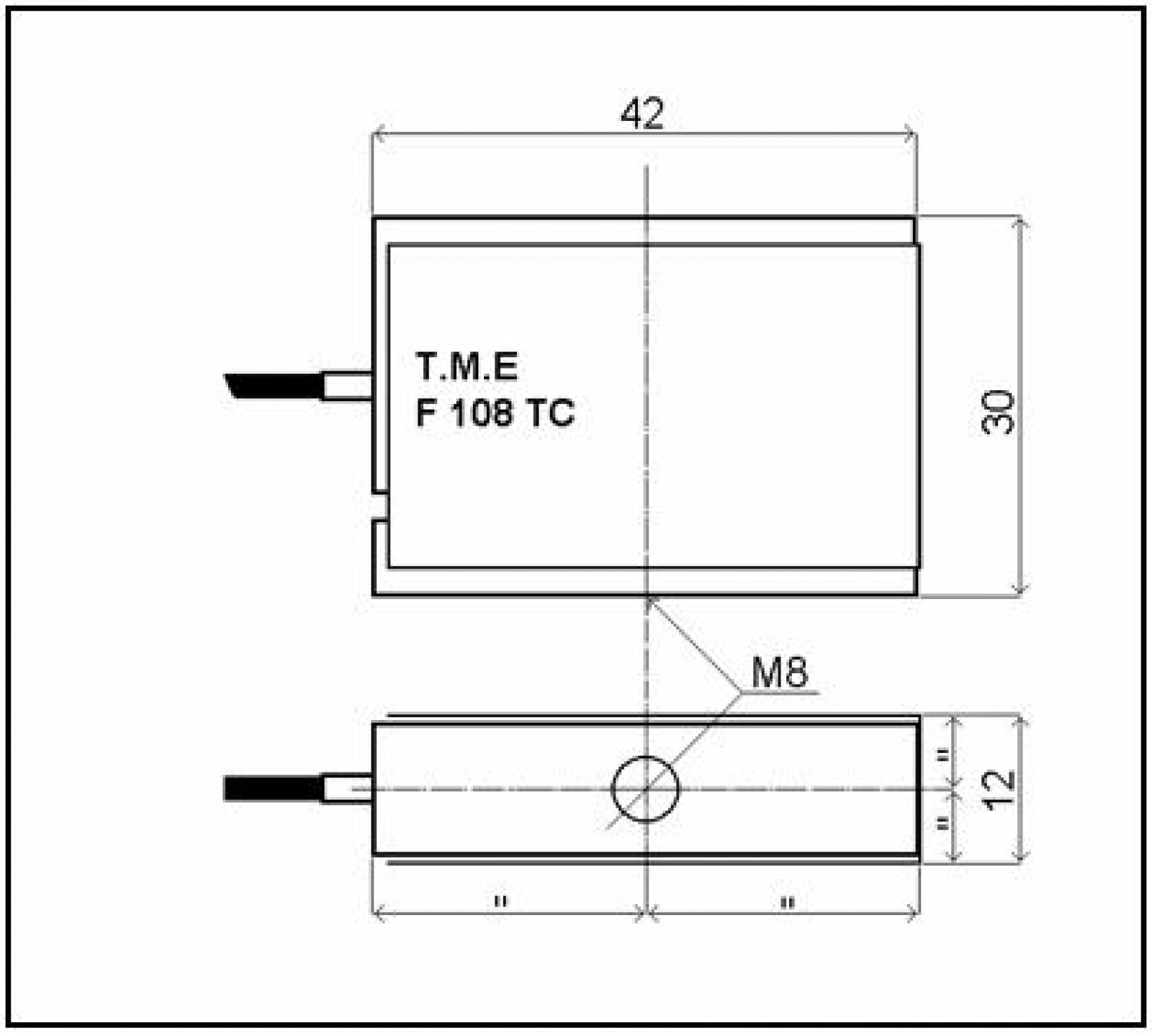

F 108 TC
- Range from ± 1 to ± 25 daN
- Tension and compression
- Overload stoppers included
- No sensitivity to side forces
- Output 1mV/V
MEASURING RANGES: 1, 2, 5, 10, 25 daN
The F108TC series forces sensors are designed to measure very low forces with a very high precision and compact sizes
- Sensitivity creep on compensated range (%/°C) : < 0,02 %EM/°C
- Zero creep on compensated range (%Em/°C) : < 0,015 %/°C
- Initial imbalance (%Em) : < +/- 2 %EM
- Hysteresis deviation (%EM) : <= 0,05 %EM
- Linearity deviation (%EM) : <= 0,1 %EM
- Sealing : IP 64
- Capacity (EM) (daN) : +/- 1, 2, 5, 10, 25 daN
- Input resistance (Ohm) : 350 Ohms
- Output resistance (Ohm) : 350 Ohms
- Electrical insulation ( MOhm) : > 5000 MOhms sous 40 V
- Material : Acier nickelé
- Sensitivity at full range (mV/V) : 1 +/- 0,2 mV/V
- Safe overload (%EM) : 500 %EM en statique
- Operating temperature (°C) : -20 à +80 °C
- Compensated temperature (°C) : +10 à +70 °C
- Excitation voltage (V) : 10 V
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
