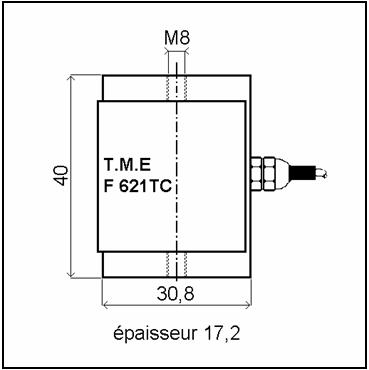

F 621 TC
- Traction/Compression
- Small footprint
- Heavy duty
- Not sensitive to side load
MEASURNG RANGES: 10, 25, 50, 100, 200 daN
The F621TC series tension-compression sensors are manufactured from a high grade high elasticity steel and nickel plated. They complete the F501TC series with a compact design advantage
- Sensitivity creep on compensated range (%/°C) : < 0,02 %/°C
- Zero creep on compensated range (%Em/°C) : < 0,015 %Em/°C
- Initial imbalance (%Em) : < +/- 2 %EM
- Hysteresis deviation (%EM) : <= 0,05 %EM
- Linearity deviation (%EM) : <= 0,1 %EM
- Sealing : IP 64
- Capacity (EM) (daN) : +/- 10, 25, 50, 100, 200 daN
- Input resistance (Ohm) : 350 Ohms
- Output resistance (Ohm) : 350 Ohms
- Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
- Material : Acier inoxydable
- Sensitivity at full range (mV/V) : 1,5 %EM
- Safe overload (%EM) : 150 %EM en compression 300 %EM en traction
- Operating temperature (°C) : -20 à +80 °C
- Compensated temperature (°C) : +10 à +70 °C
- Excitation voltage (V) : 10 V
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
