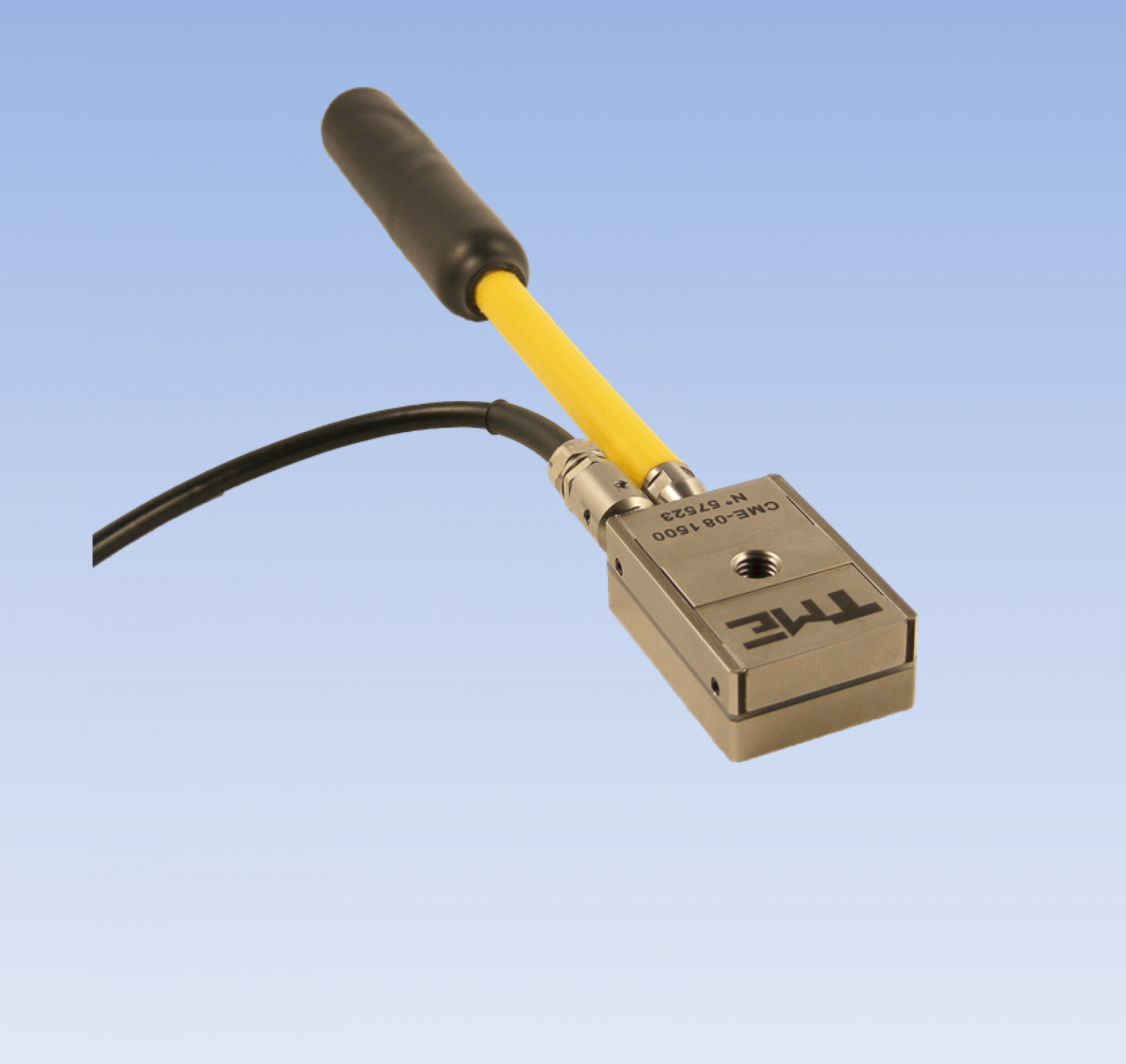

CME-08
Force measuring chain for welding machines :
- Measuring range from 1500 to 3500 daN
- Use with or without handle (self-retaining on clamp)
- Portable and autonomous
- Compact
- Robustness
MEASURING RANGES : 1 500, 2 000 et 3 000 daN
Force measuring chains CME-08 have been specially developed for the control of welding machines. Adapter set enables self-retaining on clamp and ensures high safety. Due to their insensitivity to transverse forces, measuring chains CME-08 can be used on all machine configurations including scissor clamps (X clamps).
- Strain gages
- Compression
- Cable output
- mV output
- Initial imbalance (%Em) : + / - 2 %EM
- Hysteresis deviation (%EM) : < + / - 0.18 %EM
- Linearity deviation (%EM) : < + / - 0.12 %EM
- Material : Acier inoxydable
- Safe overload (%EM) : 150 %EM
- Operating temperature (°C) : 0 à +50 °C
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
