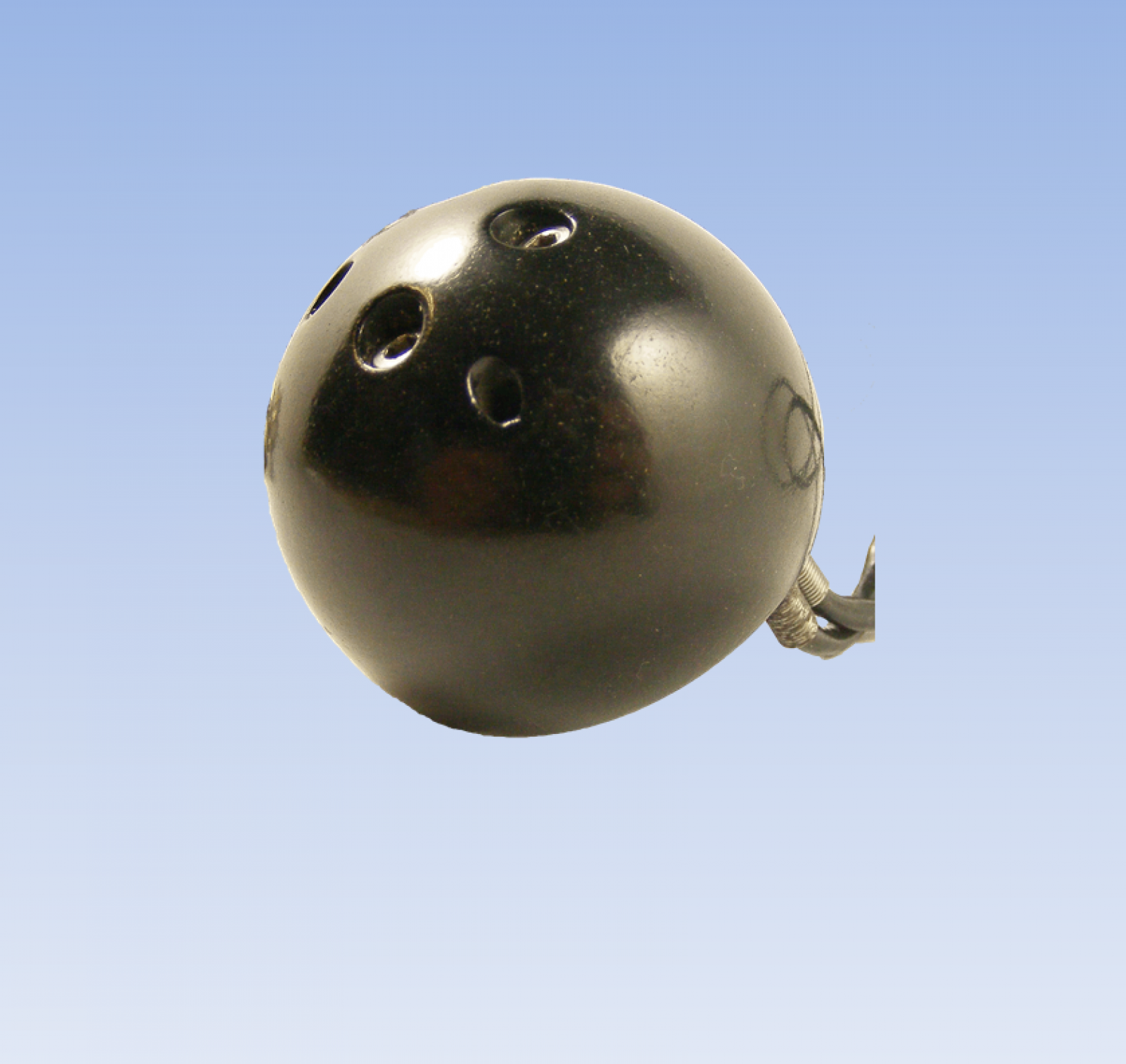

BD 3
- Range from de ± 3 ± 50 daN
- For stick shift diameter 14 or 16mm
- Available in 2 or 3 measuring axis
- Limited interactions
MEASURING RANGES : 3, 5, 10, 20, 50 daN
The BD spheres series are designed to measure loads on stick shift operations
- Strain gages
- Traction / Compression
- Cable output
- mV output
- Initial imbalance (%Em) : + / - 2 %EM
- Hysteresis deviation (%EM) : < +/- 0.3 %EM
- Linearity deviation (%EM) : < +/- 0.3 %EM
- Input resistance (Ohm) : 350 Ohms
- Output resistance (Ohm) : 350 Ohms
- Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
- Material : Acier
- Sensitivity at full range (mV/V) : 1.5 à 2 mV/V
- Safe overload (%EM) : 150 %EM
- Operating temperature (°C) : 0 à + 50 °C
- Excitation voltage (V) : 5 à 10 V
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
