FAMO2
MEASURIN RANGES : 20, 40, 60, 80, 100 daN

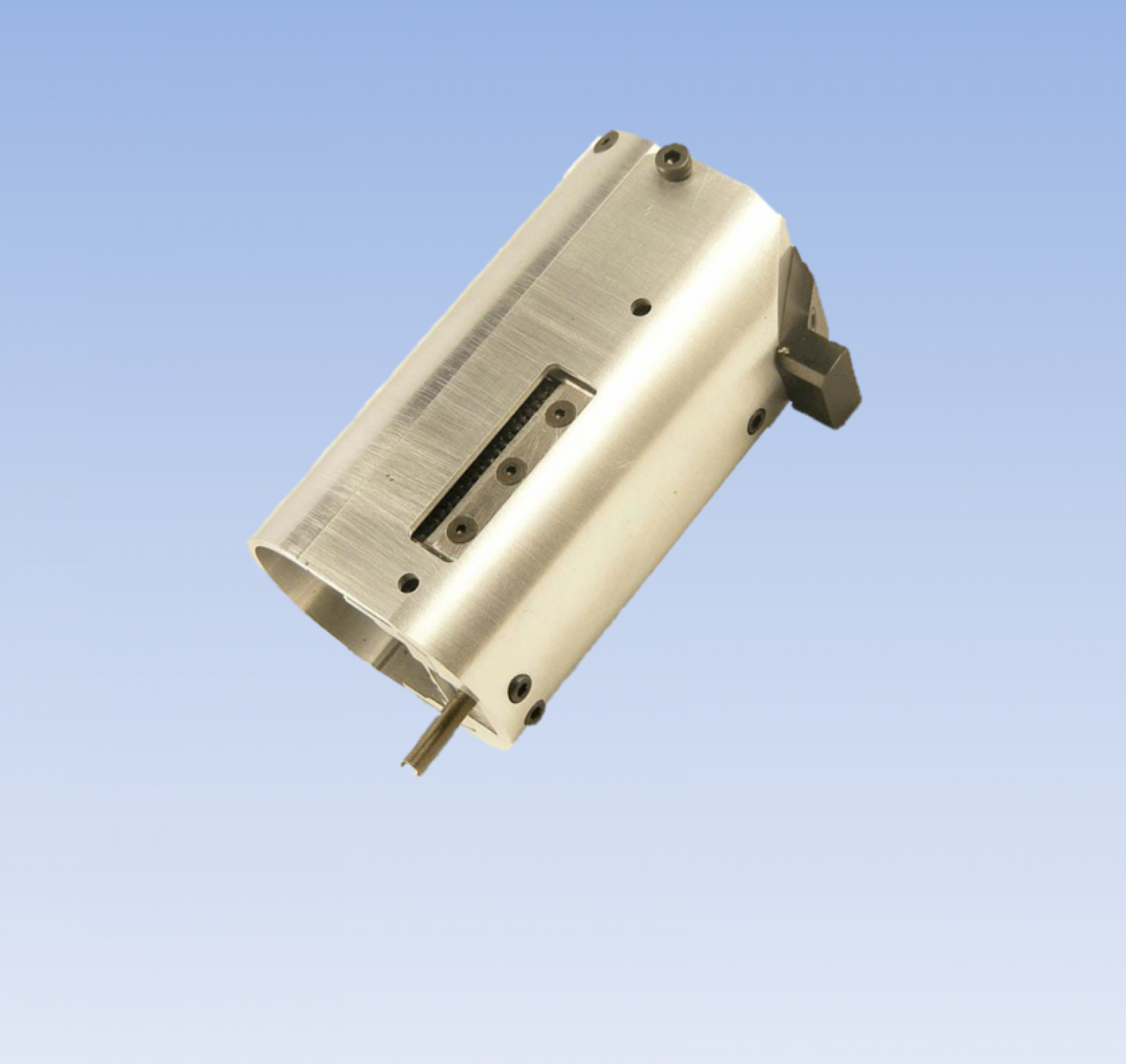

The FAM02 force sensor is designed to measure the traction forces on the handbrake of a vehicle.
The double flexure type test body is equipped with strain gauges. It is insensitive to the point of application of the fingers of the hand along the length of the body.
- Strain gages
- Compression
- Cable output
- mV output
- Hysteresis deviation (%EM) : < ou = à + / - 0.2 %EM
- Linearity deviation (%EM) : < ou = à + / - 0.1 %EM
- Input resistance (Ohm) : 415 Ohms
- Output resistance (Ohm) : 350 Ohms
- Electrical insulation ( MOhm) : > 5000 MOhms
- Material : Alliage léger
- Sensitivity at full range (mV/V) : 1.2 à 1.5 mV/V
- Safe overload (%EM) : 150 %EM
- Operating temperature (°C) : - 30 à + 60 °C
- Excitation voltage (V) : 10 à 12 V
Specific products
For any specific need , do not hesitate to consult us. Our design office will develop for you a "tailor-made" product that meets your specifications.
