F707DAC
- Compression
- 23 mm thickness
- Insensitive to the point of application
- Ease of implementation (adapters)
MEASURING RANGES : 20, 50, 100, 150 daN

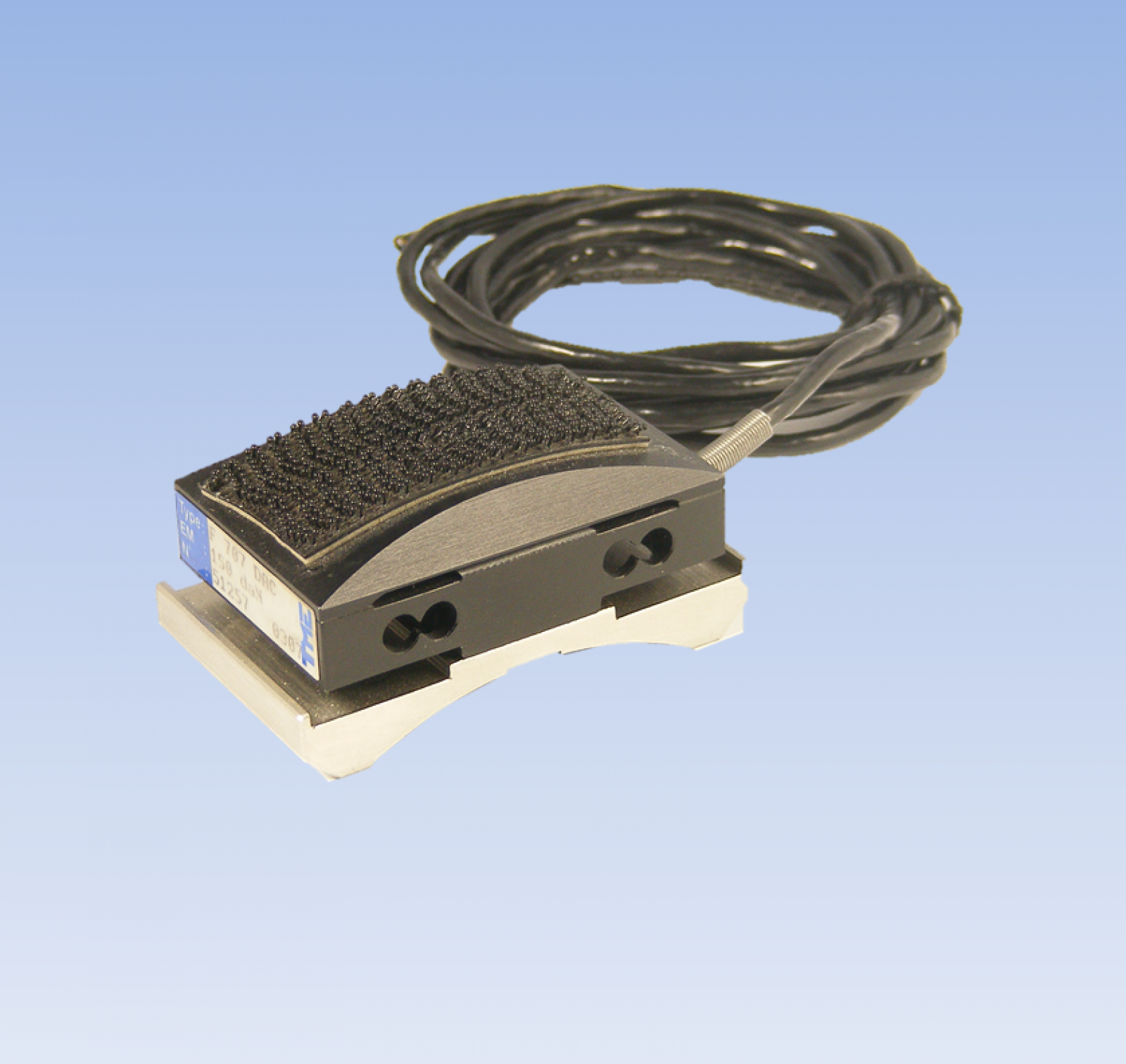

The F707DAC sensor is designed to measure the force on vehicule brake and clutch pedals. Mounting with rubber strap and optional adapters.
- Strain gages
- Compression
- Cable output
- mV output
- Initial imbalance (%Em) : +/- 2 %EM
- Hysteresis deviation (%EM) : < +/- 0.2 %EM
- Linearity deviation (%EM) : < +/- 0.2 %EM
- Input resistance (Ohm) : 350 Ohms
- Output resistance (Ohm) : 350 Ohms
- Electrical insulation ( MOhm) : > 1000 MOhms sous 40 V
- Material : Alliage léger anodisé noir
- Sensitivity at full range (mV/V) : 1.5 +/- 10 %EM
- Safe overload (%EM) : 150 %EM
- Operating temperature (°C) : - 10 à + 60 °C
- Excitation voltage (V) : 10 V
